2-1104012-3
ActiveTE Connectivity AMP Connectors

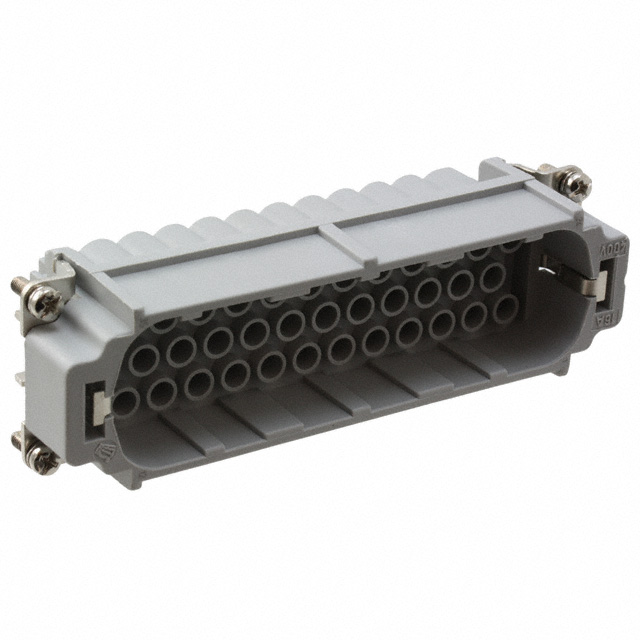

INSERT MALE 35POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
2-1104012-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 35POS+1GND CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1104012-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HVT |
| Current Rating (Amps) | 16 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 35 |
| Number of Positions [custom] | Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 8 |
| Termination Style | Crimp |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.67 | |
| 10 | $ 60.91 | |||
| 25 | $ 58.26 | |||
| 50 | $ 56.50 | |||
| 100 | $ 56.05 | |||
1104012 Series
INSERT MALE 35POS+1GND CRIMP
| Part | Contact Type | Material Flammability Rating | Housing Material | Size | Gender | Voltage Rating | Connector Type | Number of Positions [custom] | Number of Positions | Color | Current Rating (Amps) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1104012-3 | HVT | UL94 V-0 | Polybutylene Terephthalate (PBT) | 8 | Male | 400 V | Insert without Contacts | Ground | 35 | Gray | 16 A | Crimp | 125 °C | -40 °C |
Description
General part information
1104012 Series
Male Insert without Contacts Gray 35+Ground Position Crimp
Documents
Technical documentation and resources
No documents available
