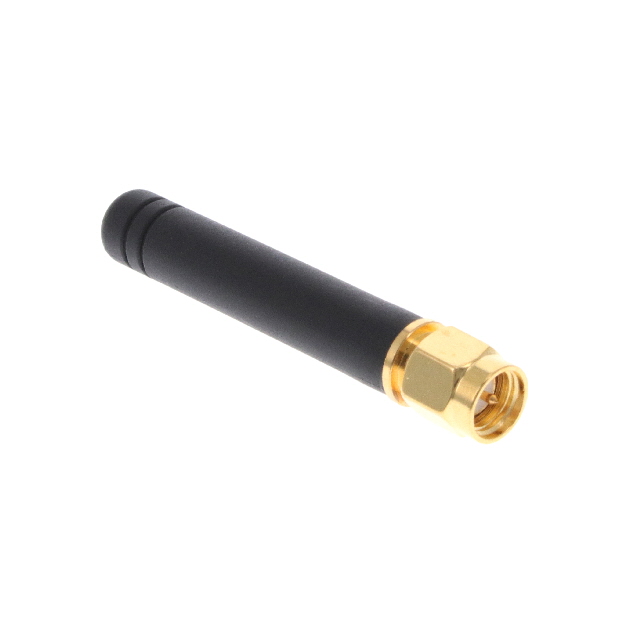

RST-GS-P-51-SMA-H
ActiveRaltron Electronics
RFANT 890-960MHZ WHIP SMA 51MM
RST-GS-P-51-SMA-H
ActiveRaltron Electronics
RFANT 890-960MHZ WHIP SMA 51MM
Description
General part information
RST-GS-P-51-SMA-H
RF ANTENNA General Purpose Whip, Straight SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | RST-GS-P-51-SMA-H |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | General Purpose |
| Frequency (Center/Band) | 925 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 960 MHz |
| Frequency Range (Min) | 890 MHz |
| Gain | 2 dBi |
| Height (Max) | 2.008 in |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| Termination Type | SMA Male |
| VSWR | 1.5 |
