A1545.09.08
ActiveAmerican Electrical Inc.

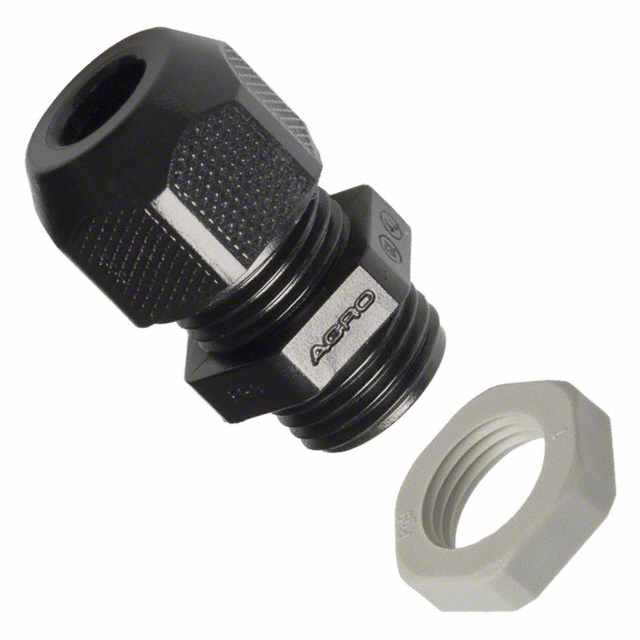

CABLE GLAND 3-8MM PG9 POLYAMIDE
Deep-Dive with AI
Search across all available documentation for this part.
A1545.09.08
ActiveAmerican Electrical Inc.
CABLE GLAND 3-8MM PG9 POLYAMIDE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1545.09.08 | 1545 Series |
|---|---|---|
| Color | Black | Black |
| Includes | Sealing Ring | Sealing Ring |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof, IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant |
| Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Operating Temperature | - | 100 °C |
| Operating Temperature | - | -30 ░C |
| Outside Cable Diameter (Max) | - | 14 - 44 mm |
| Outside Cable Diameter (Max) | - | 0.551 - 1.732 " |
| Outside Cable Diameter (Max) [Max] [diameter] | 8 mm | 7 - 38 mm |
| Outside Cable Diameter (Max) [Max] [diameter] | 0.315 in | 0.276 - 1.496 " |
| Outside Cable Diameter (Min) | - | 0.157 - 1.102 in |
| Outside Cable Diameter (Min) | - | 4 - 28 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 3 mm | 2 - 32 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.118 in | 0.079 - 1.26 in |
| Panel Hole Size | 0.598 in | 0.598 - 2.338 in |
| Panel Hole Size | 15.2 mm | 15.2 - 59.3 mm |
| Panel Hole Size | - | 1.85 in |
| Panel Hole Size | - | 47 mm |
| Thread Length | 8 mm | 8 - 15 mm |
| Thread Length | 0.315 in | 0.315 - 0.591 in |
| Thread Size | PG9 | PG21, PG11, 1/2" NPT, 1" NPT, PG9, 3/4 NPT, PG36, PG48, PG42, 3/8" NPT |
| Type | Cable Gland | Cable Gland |
1545 Series
CABLE GLAND 6.5-14MM PG21
| Part | Color | Panel Hole Size | Panel Hole Size | Material | Type | Thread Size | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Thread Length | Thread Length | Ingress Protection | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Max) [Max] | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Min) [Min] | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Panel Hole Size [diameter] | Panel Hole Size [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Electrical Inc. A1545.21.14 | Black | 28.3 mm | 1.114 in | Polyamide (PA), Nylon | Cable Gland | PG21 | Sealing Ring | 100 °C | -30 ░C | 6.5 mm | 0.256 in | 0.433 in | 11 mm | IP68 - Dust Tight, Waterproof | 14 mm | 0.551 " | ||||||
American Electrical Inc. A1545.11.10 | Black | 18.6 mm | 0.732 in | Polyamide (PA), Nylon | Cable Gland | PG11 | Sealing Ring | 100 °C | -30 ░C | 0.315 in | 8 mm | IP68 - Dust Tight, Waterproof | 0.157 in | 4 mm | 0.394 " | 10 mm | ||||||
American Electrical Inc. A1545.N0500.07 | Black | Polyamide (PA), Nylon | Cable Gland | 1/2" NPT | Sealing Ring | 100 °C | -30 ░C | 3 mm | 0.118 in | 0.591 in | 15 mm | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | 0.276 in | 7 mm | ||||||||
American Electrical Inc. A1545.N1000.22 | Black | Polyamide (PA), Nylon | Cable Gland | 1" NPT | Sealing Ring | 100 °C | -30 ░C | 0.591 in | 15 mm | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | 0.866 " | 22 mm | ||||||||||
American Electrical Inc. A1545.09.08 | Black | 15.2 mm | 0.598 in | Polyamide (PA), Nylon | Cable Gland | PG9 | Sealing Ring | 3 mm | 0.118 in | 0.315 in | 8 mm | IP68 - Dust Tight, Waterproof | 0.315 in | 8 mm | ||||||||
American Electrical Inc. A1545.N0750.14 | Black | Polyamide (PA), Nylon | Cable Gland | 3/4 NPT | Sealing Ring | 100 °C | -30 ░C | 6.5 mm | 0.256 in | 0.591 in | 15 mm | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | 14 mm | 0.551 " | ||||||||
American Electrical Inc. A1545.21.18 | Black | 28.3 mm | 1.114 in | Polyamide (PA), Nylon | Cable Gland | PG21 | Sealing Ring | 100 °C | -30 ░C | 11 mm | 0.433 in | 0.433 in | 11 mm | IP68 - Dust Tight, Waterproof | 0.709 in | 18.01 mm | ||||||
American Electrical Inc. A1545.N0500.12 | Black | Polyamide (PA), Nylon | Cable Gland | 1/2" NPT | Sealing Ring | 100 °C | -30 ░C | 5.5 mm | 0.217 in | 0.591 in | 15 mm | IP54/IP68 - Dust Protected, Dust Tight, Waterproof, Water Resistant | 0.472 in | 12 mm | ||||||||
American Electrical Inc. A1545.36.33 | Black | Polyamide (PA), Nylon | Cable Gland | PG36 | Sealing Ring | 100 °C | -30 ░C | 22 mm | 0.866 in | 0.591 in | 15 mm | IP68 - Dust Tight, Waterproof | 33 mm | 1.299 in | 1.85 in | 47 mm | ||||||
American Electrical Inc. A1545.11.07 | Black | 18.6 mm | 0.732 in | Polyamide (PA), Nylon | Cable Gland | PG11 | Sealing Ring | 100 °C | -30 ░C | 2 mm | 0.079 in | 0.315 in | 8 mm | IP68 - Dust Tight, Waterproof | 0.276 in | 7 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 1.85 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.55 | |||
| 50 | $ 1.51 | |||
| 100 | $ 1.44 | |||
| 250 | $ 1.30 | |||
| 500 | $ 1.20 | |||
| 1000 | $ 1.03 | |||
| 2500 | $ 0.96 | |||
Description
General part information
1545 Series
Cable Gland Polyamide (PA), Nylon PG9 Black
