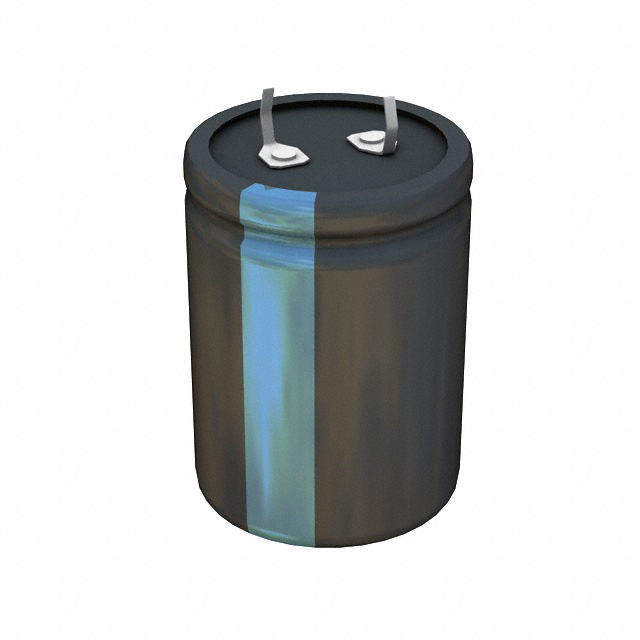

Specification	381EL471M315A042

Applications	General Purpose
Capacitance	470 µF
ESR (Equivalent Series Resistance)	380 mOhm
Height - Seated (Max)	1.575 in
Lead Spacing	0.394 in
Lifetime	7000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	1.4 A, 1.96 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	315 V
