TT6JL
ActiveDiodes Inc
6A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
TT6JL
ActiveDiodes Inc
6A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Description
General part information
TT6JL
6A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Technical Specifications
Parameters and characteristics for this part
| Specification | TT6JL |
|---|---|
| Current - Average Rectified (Io) | 6 A |
| Current - Reverse Leakage | 5 µA |
| Diode Type | Single Phase |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |

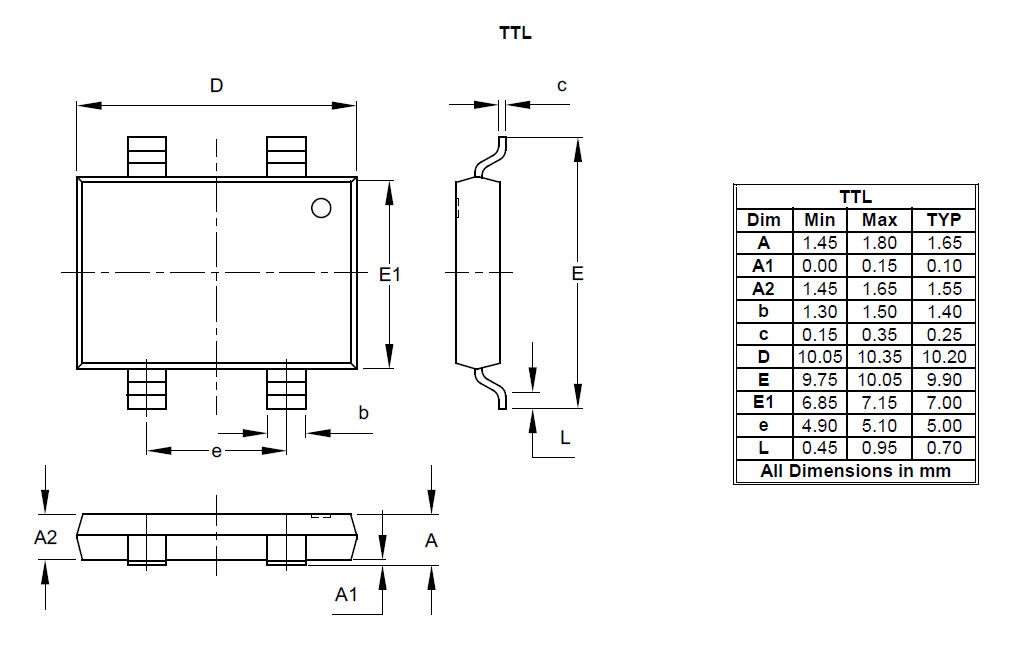

| Package / Case | 4-SMD, Gull Wing |
| Package Name | TT |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) | 900 mV |
| Voltage - Peak Reverse (Max) | 600 V |
