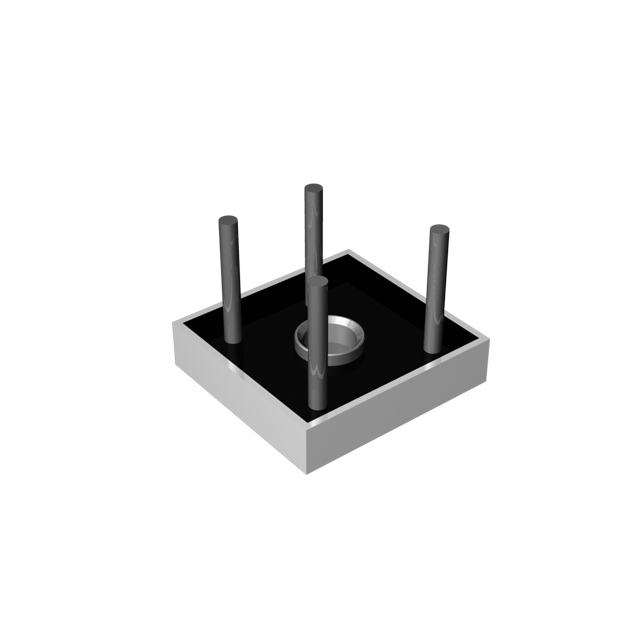

GBPC1506W

Active

Surge

15A -600V - GBPC-W - BRIDGE

Search across all available documentation for this part.

Active

Surge

15A -600V - GBPC-W - BRIDGE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GBPC1506W	GBPC15 Series

Current - Average Rectified (Io)	15 A	15 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Diode Type	Single Phase	Single Phase
Mounting Type	-	QC Terminal
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 °C	-65 - -50 °C
Package / Case	-	4-Square, GBPC
Supplier Device Package	-	GBPC
Technology	Standard	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V
Voltage - Peak Reverse (Max) [Max]	600 V	600 V

15A -600V - GBPC-W - BRIDGE

Part	Current - Average Rectified (Io)	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Voltage - Peak Reverse (Max) [Max]	Diode Type	Supplier Device Package	Package / Case	Mounting Type
Surge GBPC1506W	15 A	5 µA	1.1 V	150 °C	-65 °C	Standard	600 V	Single Phase
Surge GBPC1506	15 A	5 µA	1.1 V	150 °C	-50 °C	Standard	600 V	Single Phase	GBPC	4-Square, GBPC	QC Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 600 V
