FMCN44255
ActiveFairview Microwave
CONN PLUG SOLDER FAKRA
FMCN44255
ActiveFairview Microwave
CONN PLUG SOLDER FAKRA
Description
General part information
FMCN44255

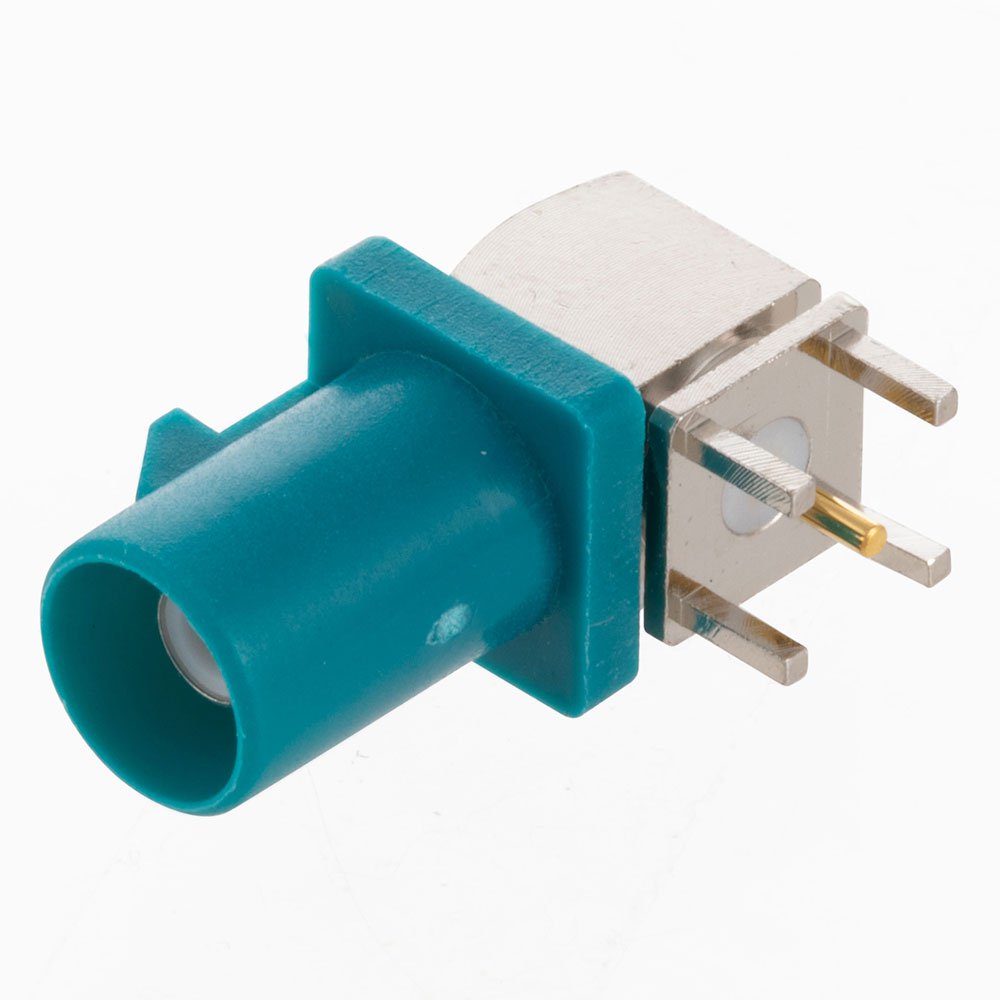

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN44255 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | Fakra, SMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Locking Ramp |
| Features | Code Z |
| Frequency - Max | 4 GHz |
| Housing Color | Water, Blue |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 335 V |
