200CJ
ActiveEaton - Electronics Division
FUSE CRTRDGE 200A 600VAC/250VDC
200CJ
ActiveEaton - Electronics Division
FUSE CRTRDGE 200A 600VAC/250VDC
Description
General part information
200CJ

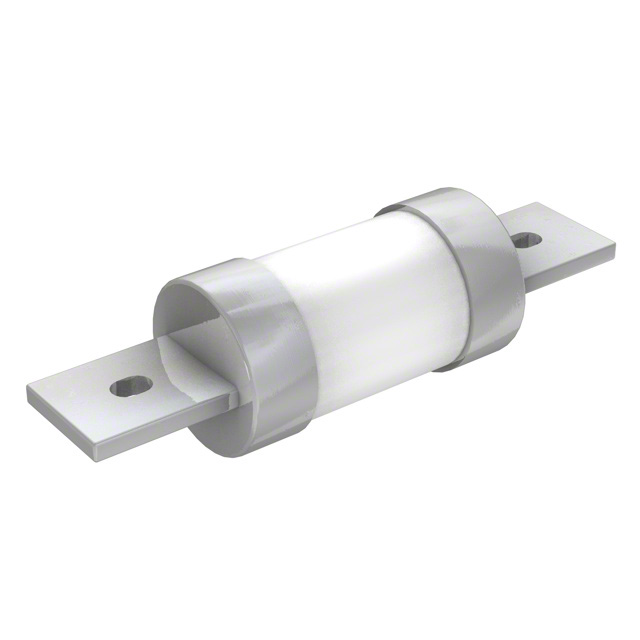

200A 600 VAC 250 VDC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 200CJ |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CSA |
| Breaking Capacity | 200 kA |
| Current Rating | 200 A |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 1.614 in |
| Size / Dimension Length | 2.992 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 250 VDC |
