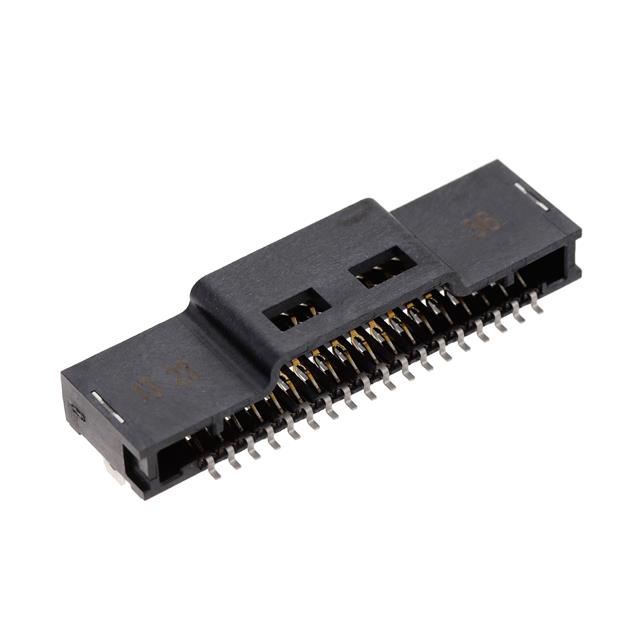

FFC / FPC BOARD CONNECTOR, 1.8 MM, 36 CONTACTS, RECEPTACLE, ZCONNECT SERIES
Z2A1-36AFRS-BA0001
ActiveMcGill Microwave Systems
FFC / FPC BOARD CONNECTOR, 1.8 MM, 36 CONTACTS, RECEPTACLE, ZCONNECT SERIES
Description
General part information
Z2A1-36AFRS-BA0001
36 Position Connector Contacts, Bottom 0.071" (1.80mm) Surface Mount, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | Z2A1-36AFRS-BA0001 |
|---|---|
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Features | Board Guide |
| Height Above Board | 0.311 in |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Mounting Type | Right Angle, Surface Mount |
| Number of Positions | 36 |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.071 in |
| Termination | Solder |
