H2UN3P1D2V0100

Active

Unictron Technologies Corporation

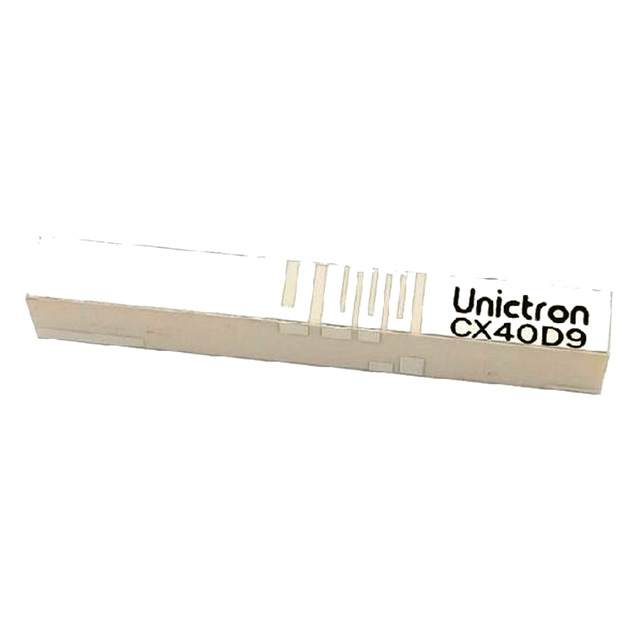

UNICTRON CX40D9 - 5G FR1 CHIP AN

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

UNICTRON CX40D9 - 5G FR1 CHIP AN

Technical Specifications

Parameters and characteristics for this part

UNICTRON CX40D9 - 5G FR1 CHIP AN

Part	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Power - Max [Max]	Frequency (Center/Band)	Termination	Antenna Type	Mounting Type	Frequency Group	Applications	Gain
Unictron Technologies Corporation H2UN3P1D2V0100	6 mm	0.236 in	Cellular	6	2.17 GHz, 2.69 GHz, 4.2 GHz, 5 GHz, 5.925 GHz, 960 MHz	1.71 GHz, 2.3 GHz, 3.3 GHz, 4.4 GHz, 5.15 GHz, 617 MHz	2 W	1.94 GHz, 2.495 GHz, 3.75 GHz, 4.7 GHz, 5.5375 GHz, 788.5 MHz	Solder	Chip	Surface Mount	Wide Band	4G, 5G	1.5 dBic, 2.5 dBi, 2.6 dBi, 2.7 dBi, 3 dBi, 3.5 dBi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA 4G, 5G Chip Solder Surface Mount
