Specification	EK-U1-VCU118-ES1-G-J

Contents	Board, Cable(s) - Power Supply Not Included -
For Use With/Related Products	XCVU9P
Interconnect System	FMC+, Pmod, FMC
P/N Breakdown	J = Japan version does not ship with a power supply

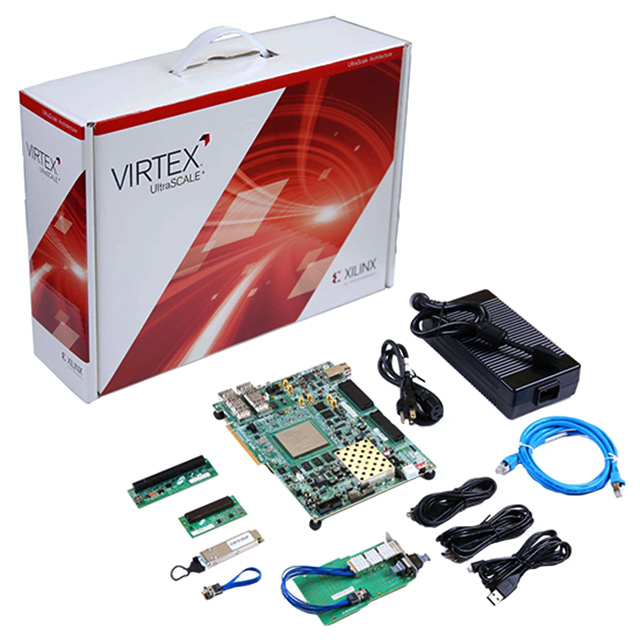

Platform	Virtex UltraScale+ FPGA VCU118 ES1 Japan PCIe Card
Suggested Programming Environment	Vivado
Type	FPGA
Utilized IC / Part	XCVU9P

XCVU9 Series

Part	Mounting Type	Number of LABs/CLBs	Number of I/O	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Number of Logic Elements/Cells	Package Width	Package Name	Package Length	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Total RAM Bits	For Use With/Related Products	Suggested Programming Environment	Interconnect System	Utilized IC / Part	Type	Platform	Contents	P/N Breakdown
AMD / Xilinx XCVU9P-1FLGA2104I	Surface Mount	147780	832	100 °C	-40 °C	2104-BBGA FCBGA	2586150	47.5 mm	2104-FCBGA	47.5 mm	0.876 V	0.825 V	391168000 bits
AMD / Xilinx XCVU9P-L2FLGA2577E	Surface Mount	147780	448	110 °C	0 °C	2577-BBGA FCBGA	2586150	52.5 mm	2577-FCBGA	52.5 mm	0.742 V	0.698 V	391168000 bits
AMD / Xilinx XCVU9P-L2FLGB2104E	Surface Mount	147780	702	110 °C	0 °C	2104-BBGA FCBGA	2586150	47.5 mm	2104-FCBGA	47.5 mm	0.742 V	0.698 V	391168000 bits
AMD / Xilinx XCVU9P-3FLGB2104E	Surface Mount	147780	702	100 °C	0 °C	2104-BBGA FCBGA	2586150	47.5 mm	2104-FCBGA	47.5 mm	0.927 V	0.873 V	391168000 bits
AMD / Xilinx EK-U1-VCU118-G														XCVU9P	Vivado	FMC FMC+ Pmod	XCVU9P	FPGA	Virtex UltraScale+ FPGA VCU118 PCIe Card	Board Cable Power Supply
AMD / Xilinx XCVU9P-2FLGA2577E	Surface Mount	147780	448	100 °C	0 °C	2577-BBGA FCBGA	2586150	52.5 mm	2577-FCBGA	52.5 mm	0.876 V	0.825 V	391168000 bits
AMD / Xilinx XCVU9P-1FLGB2104I	Surface Mount	147780	702	100 °C	-40 °C	2104-BBGA FCBGA	2586150	47.5 mm	2104-FCBGA	47.5 mm	0.876 V	0.825 V	391168000 bits
AMD / Xilinx XCVU9P-2FLGB2104I	Surface Mount	147780	702	100 °C	-40 °C	2104-BBGA FCBGA	2586150	47.5 mm	2104-FCBGA	47.5 mm	0.876 V	0.825 V	391168000 bits
AMD / Xilinx EK-U1-VCU118-G-J														XCVU9P	Vivado	FMC FMC+ Pmod	XCVU9P	FPGA	Virtex UltraScale+ FPGA VCU118 Japan PCIe Card	Board Cable(s) - Power Supply Not Included -	J = Japan version does not ship with a power supply
AMD / Xilinx XCVU9P-L2FLGC2104E	Surface Mount	147780	416	110 °C	0 °C	2104-BBGA FCBGA	2586150	47.5 mm	2104-FCBGA	47.5 mm	0.742 V	0.698 V	391168000 bits

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EK-U1-VCU118-ES1-G-J | Datasheet
