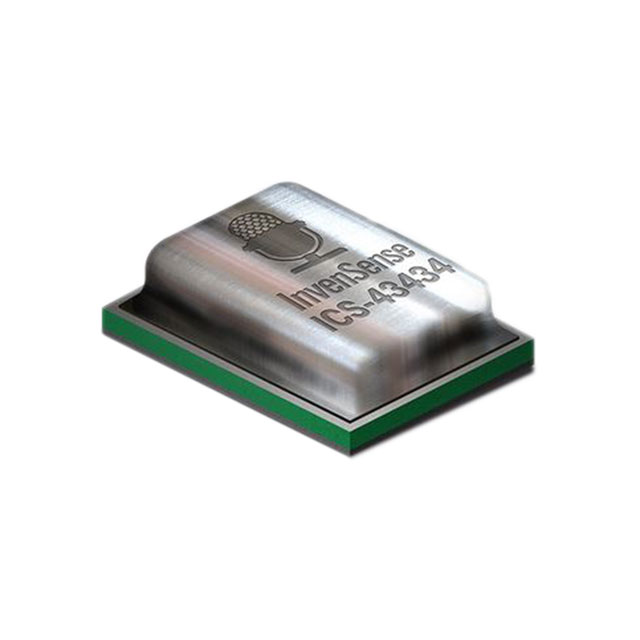

ICS-43434
ObsoleteTDK Corporation
MICROPHONE MEMS DIGITAL I2S OMNI
ICS-43434
ObsoleteTDK Corporation
MICROPHONE MEMS DIGITAL I2S OMNI
Description
General part information
ICS-43434
60 Hz ~ 20 kHz Digital, I2S Microphone MEMS (Silicon) 1.65 V ~ 3.63 V Omnidirectional (-26 ±1dB @ 94dB SPL) Solder Pads
Technical Specifications
Parameters and characteristics for this part
| Specification | ICS-43434 |
|---|---|
| Current - Supply | 550 µA |
| Direction | Omnidirectional |
| Frequency Range (Max) | 20 kHz |
| Frequency Range (Min) | 60 Hz |
| Height (Max) | 0.039 in |
| Output Type | I2S, Digital |
| Port Location | Bottom |
| S/N Ratio | 64 dB |
| Sensitivity (Nominal) | -26 dB |
| Sensitivity Tolerance | 1 dB |
| Shape | Rectangular |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.104 in |
| Termination | Solder Pads |
| Type | MEMS (Silicon) |
| Voltage Range (Max) | 3.63 V |
| Voltage Range (Min) | 1.65 V |
