2213434-1
ActiveTE Connectivity AMP Connectors

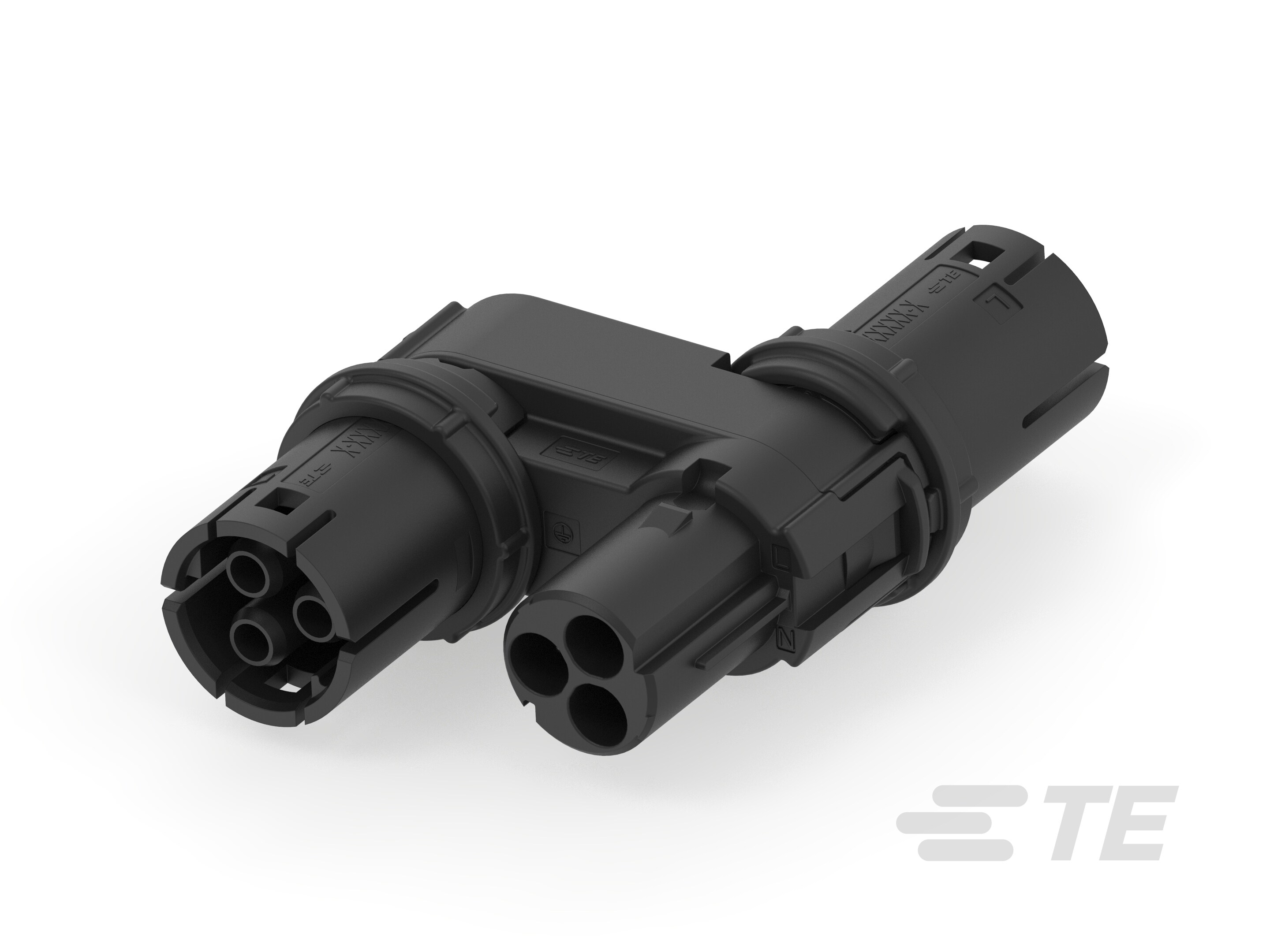

LIGHTING CONNECTORS 3P SPLITTER ASSY CODE A
2213434-1
ActiveTE Connectivity AMP Connectors
LIGHTING CONNECTORS 3P SPLITTER ASSY CODE A
Description
General part information
NECTOR M Series
3 Position Circular Connector, Wire-to-Wire, Wire & Cable
Technical Specifications
Parameters and characteristics for this part
| Specification | 2213434-1 |
|---|---|
| Connector Type | T-Splitter |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Features | Keyed |
| Housing Color | Black |
| Housing Material | Glass Filled, Polybutylene Terephthalate, PBT |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Style | Cable/Wire |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
