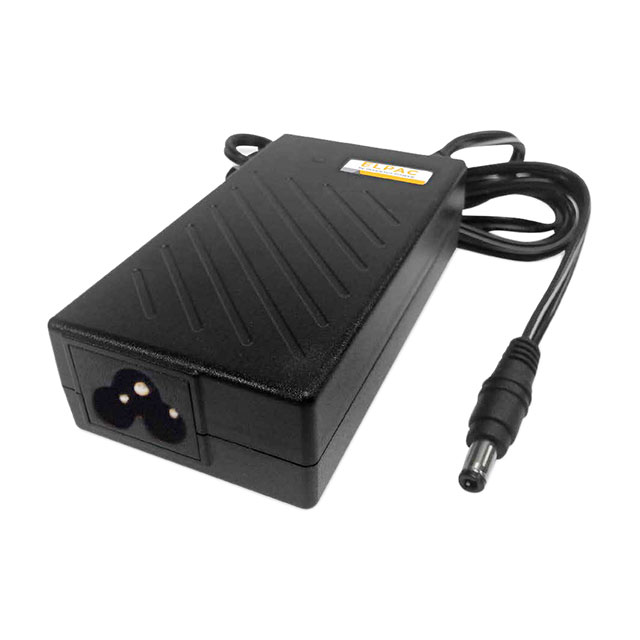

FWA020012A-10A

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 20W

Search across all available documentation for this part.

Active

Inventus Power

AC/DC DESKTOP ADAPTER 12V 20W

Technical Specifications

Parameters and characteristics for this part

AC/DC DESKTOP ADAPTER 12V 20W

Part	Form	Input Type	Current - Output (Max) [Max]	Applications	Power (Watts)	No Load Power Consumption	Input Connector	Output Connector [diameter]	Output Connector [x]	Output Connector	Region Utilized	Polarization	Voltage - Output	Approval Agency	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]
Inventus Power FWA020012A-10A	Desktop (Class I)	Cord	1.67 A	ITE (Commercial)	20 W	300 mW	IEC 320-C6	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	International	Positive Center	12 V	CB, CE, GS, TUV	Level VI	33 mm	2.04 in	87.7 mm	3.45 in	51.8 mm	1.3 "	1.22 m	48 in	60 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 18.18

General part information

12V 20 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

No documents available
