Description
General part information

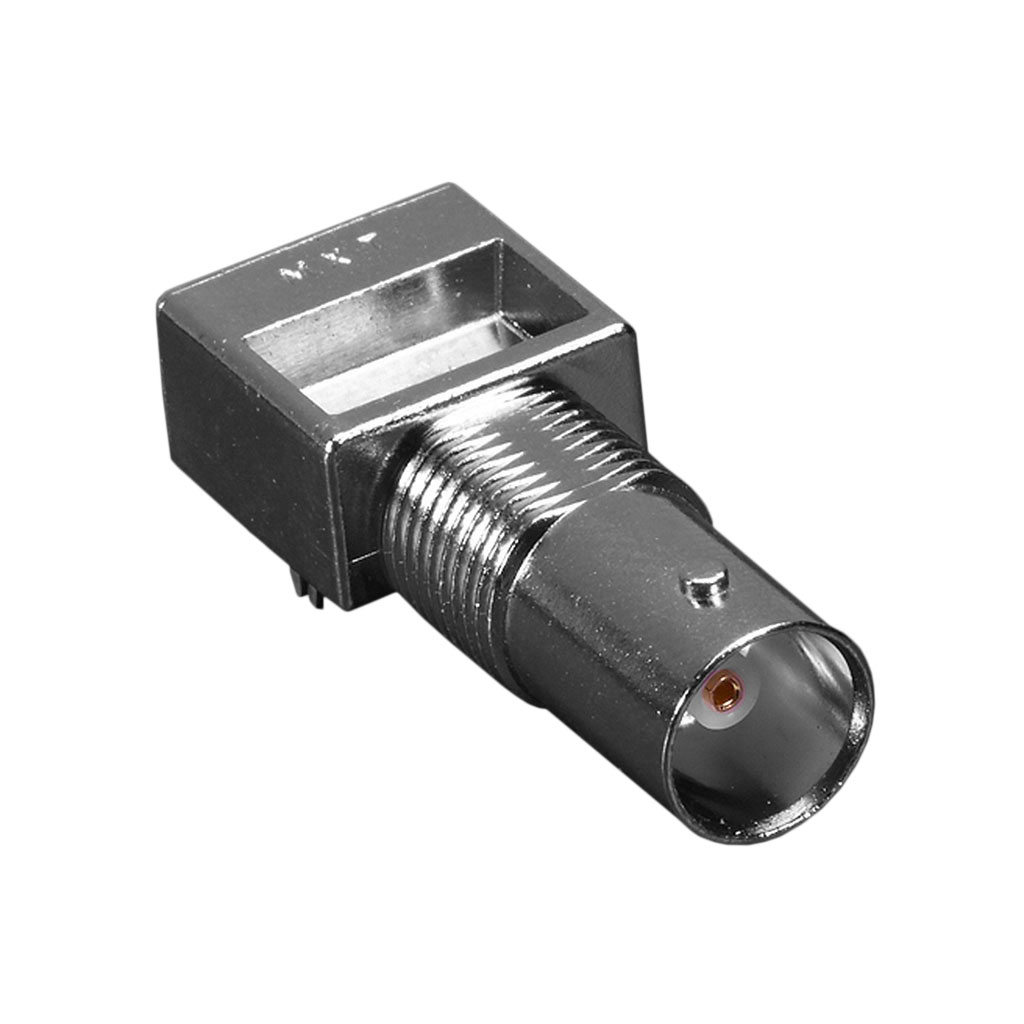

0731714340
BNC, R/A, BULKHEAD, PCB, TH, 75
Technical Specifications
Parameters and characteristics for this part
| Specification | 0731714340 |
|---|---|
| Center Contact Material | Phosphor Bronze |
| Connector Style | BNC |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
