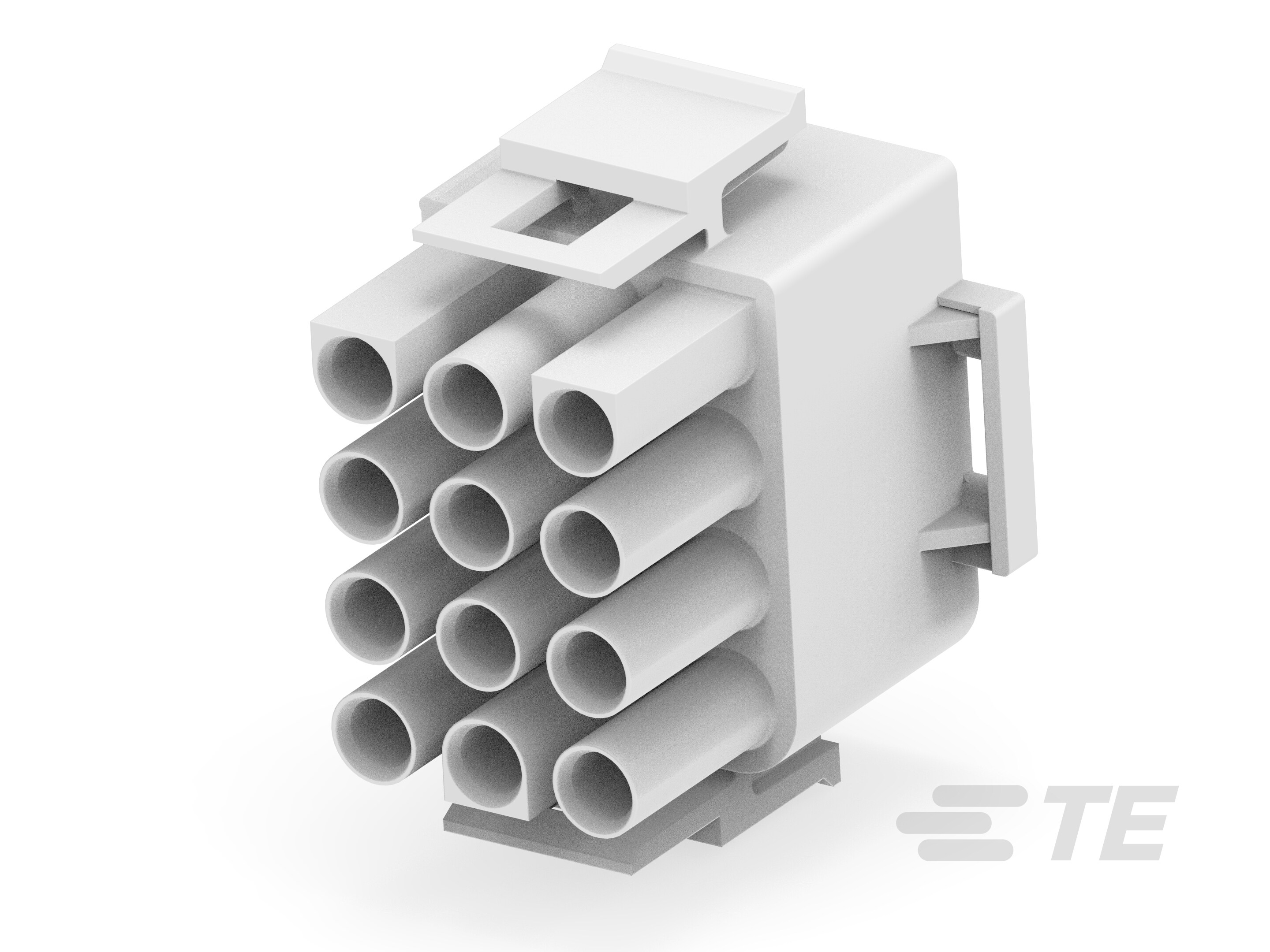

350735-4
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 12POS
350735-4
ActiveTE Connectivity AMP Connectors
CONN PLUG HSG 12POS
Description
General part information
350735-4
CONN PLUG HSG 12POS
Technical Specifications
Parameters and characteristics for this part
| Specification | 350735-4 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female, Male, Female |
| Fastening Type | Latch Lock |
| Insulation Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Row Spacing | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Product Specification - Universal MATE-N-LOK Connectors
Application Specification - Universal MATE-N-LOK* Connectors
Instruction Sheet - Universal MATE-N-LOK* Connectors
ENG_CD_350735_Z.pdf
SOFT_SHELL_PIN_SOCKET_CONNECTORS_STANDARD_DENSITY
Universal MATE-N-LOK Connector
Universal, Commercial, and .140 MATE-N-LOK Contact and Housing Selection Charts
Universal Mate-N- LOK
Datasheet
350735-4 | Datasheet
