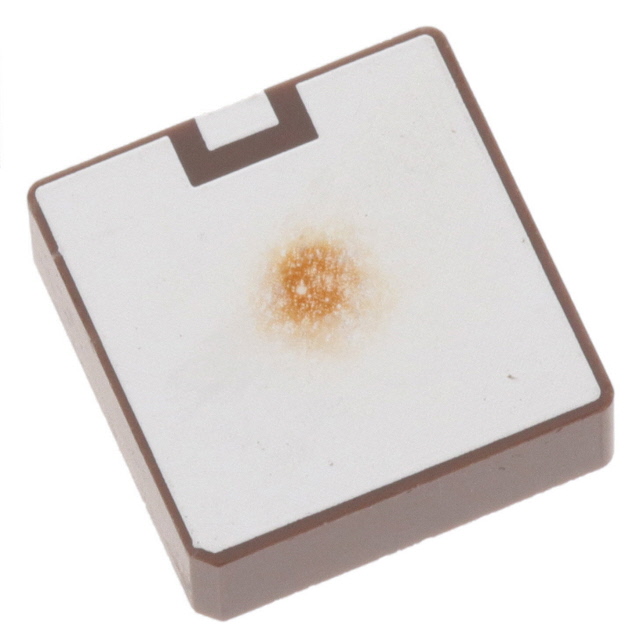

2440AT62A0085001E
ActiveJohanson Technology Inc.
2.4GHZ PATCH ANT TR ROHS COMPLIANT: YES
2440AT62A0085001E
ActiveJohanson Technology Inc.
2.4GHZ PATCH ANT TR ROHS COMPLIANT: YES
Description
General part information
2440AT62A0085001E
RF ANTENNA General Purpose Ceramic Patch Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2440AT62A0085001E |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | General Purpose |
| Frequency (Center/Band) | 2.4425 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2485 MHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 3.5 dBi |
| Height (Max) | 0.157 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 2 VA |
| Return Loss | 6 dB |
| Termination | Solder |
