Description
General part information

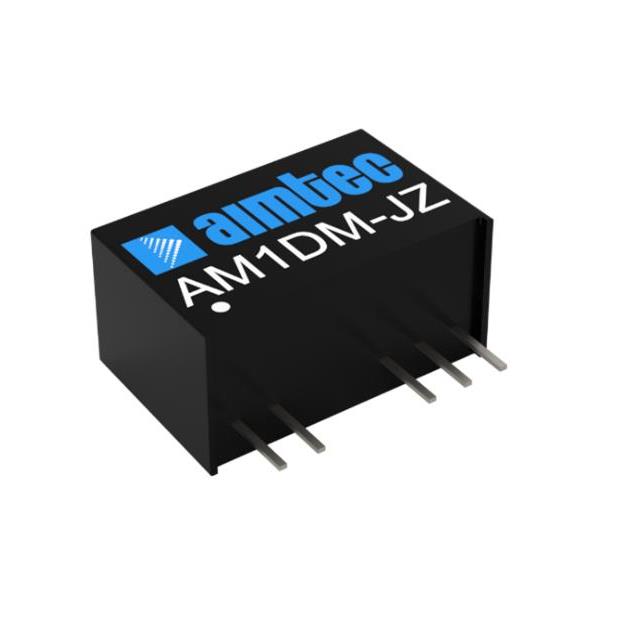

AM1DM-1203SH60JZ
Isolated Module DC DC Converter 1 Output -3 ~ 3V 303mA 10.8V - 13.2V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1DM-1203SH60JZ |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE |
| Current - Output (Max) | 303 mA |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 7-DIP Module, 7-SIP |
| Power (Watts) | 1 W |
| Size / Dimension Height | 0.49 in |
| Size / Dimension Length | 0.77 in |
| Size / Dimension Width | 0.39 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 13.2 V |
| Voltage - Input (Min) | 10.8 V |
| Voltage - Isolation | 5000 Vrms |
| Voltage - Output 1 (Max) | 3 V |
| Voltage - Output 1 (Min) | -3 V |
