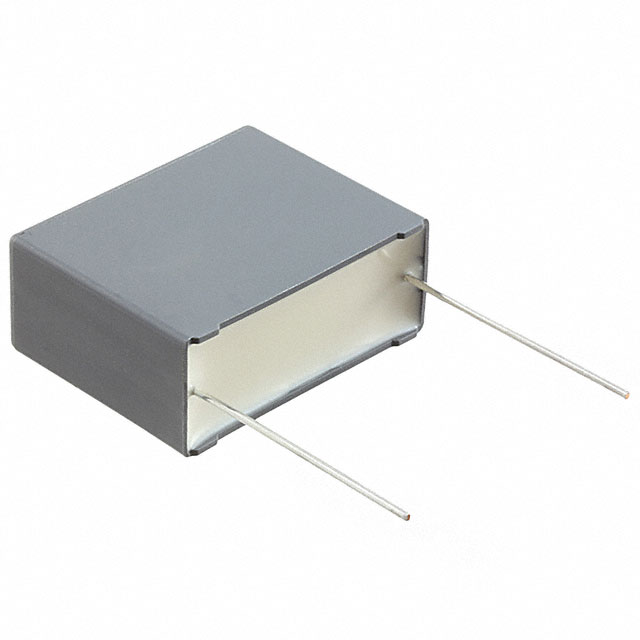

Specification	R463R422040M1K

Applications	RFI Suppression, EMI
Capacitance	2.2 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	1.106 in
Lead Spacing	1.083 in
Mounting Type	Through Hole
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension Length	1.26 in
Size / Dimension Width	0.551 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	310 V
Voltage Rating - DC	630 V

R463R Series

Part	Ratings	Voltage Rating - DC	Operating Temperature (Min)	Operating Temperature (Max)	Applications	Voltage Rating - AC	Termination	Tolerance	Mounting Type	Lead Spacing	Dielectric Material	Height - Seated (Max)	Size / Dimension Width	Size / Dimension Length	Capacitance	Package / Case
KEMET R463R368050M1K	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	10 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	0.673 in	0.354 in	1.26 in	0.68 µF	Radial
KEMET R463R368040M1M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	0.673 in	0.354 in	1.26 in	0.68 µF	Radial
KEMET R463R447000M2K	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	10 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	1.303 in	0.709 in	1.26 in	4.7 µF	Radial
KEMET R463R447040M2M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	1.303 in	0.709 in	1.26 in	4.7 µF	Radial
KEMET R463R34700001M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	0.673 in	0.354 in	1.26 in	0.47 µF	Radial
KEMET R463R422040M1M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	1.106 in	0.551 in	1.26 in	2.2 µF	Radial
KEMET R463R433040M2M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	1.303 in	0.709 in	1.26 in	3.3 µF	Radial
KEMET R463R410000M1M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	0.791 in	0.433 in	1.26 in	1 µF	Radial
KEMET R463R410050M1K	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	10 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	0.791 in	0.433 in	1.26 in	1 µF	Radial
KEMET R463R447040M1M	X2	630 V	-40 °C	110 °C	EMI RFI Suppression	310 V	PC Pins	20 %	Through Hole	1.083 in	Metallized Polypropylene (PP)	1.461 in	0.866 in	1.26 in	4.7 µF	Radial
