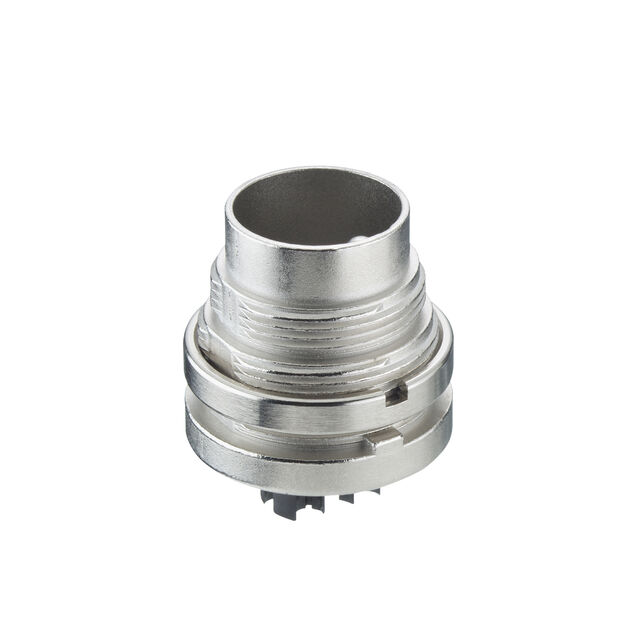

SGV 71 C
ActiveLumberg Inc
IP40 CHASSIS PLUG CRIMP BACK 7P
SGV 71 C
ActiveLumberg Inc
IP40 CHASSIS PLUG CRIMP BACK 7P
Description
General part information
SGV 71 C
8 Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | SGV 71 C |
|---|---|
| Color | Silver |
| Connector Type | Female Sockets, Plug, Plug Housing |
| Contact Type | Crimp |
| Current Rating | 5 A |
| Fastening Type | Threaded |
| Housing Color | Silver |
| Ingress Protection | IP40 |
| Material Flammability Rating | UL94 V-0, UL94 |
| Mounting Feature | Rear Side Nut, Bulkhead |
| Mounting Type | Panel Mount, Chassis Mount |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M16 |
| Termination | Crimp |
| Type | For Female Sockets |
