ESDLC5V0P7B-TP
ObsoleteMCC (Micro Commercial Components)
TVS DIODE 5VWM 12VC DFN15106
ESDLC5V0P7B-TP
ObsoleteMCC (Micro Commercial Components)
TVS DIODE 5VWM 12VC DFN15106
Description
General part information
ESDLC5V0P7B-TP

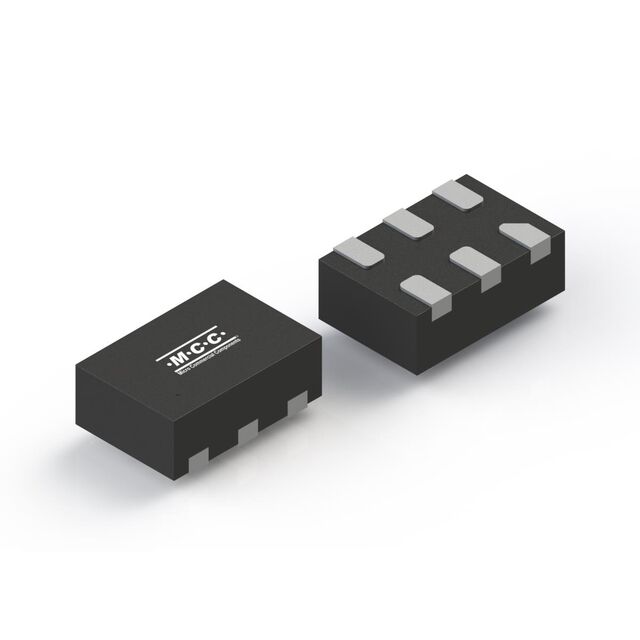

12V Clamp 2A (8/20µs) Ipp Tvs Diode Surface Mount DFN1510-6
Technical Specifications
Parameters and characteristics for this part
| Specification | ESDLC5V0P7B-TP |
|---|---|
| Applications | General Purpose |
| Bidirectional Channels | 4 |
| Capacitance | 9 pF |
| Current - Peak Pulse | 2 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 6-UFDFN |
| Package Name | DFN1510-6 |
| Power - Peak Pulse | 24 W |
| Power Line Protection | No |
| Type | Zener |
| Voltage - Breakdown (Min) | 6 V |
| Voltage - Clamping (Max) | 12 V |
| Voltage - Reverse Standoff (Max) | 5 V |
