Description
General part information

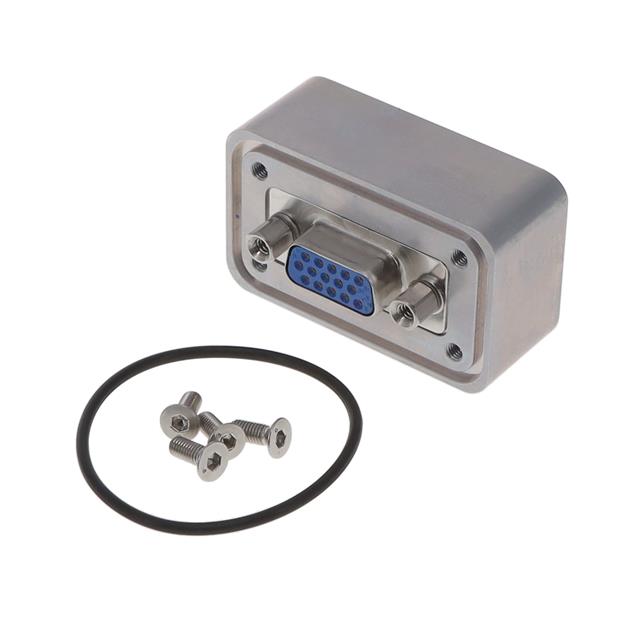

XAVAC15M/SI.1/AA
Adapter Connector D-Sub, 15 HD, Male To D-Sub, 15 HD, Female Free Hanging (In-Line)
Technical Specifications
Parameters and characteristics for this part
| Specification | XAVAC15M/SI.1/AA |
|---|---|
| Connector Style | Connector Saver |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Convert From (Adapter End) | Female, D-Sub, 15 HD |
| Convert To (Adapter End) | Male, D-Sub, HD |
| Convert To (Adapter End) Pin Count | 15 pins |
| Finish | Gold Plated |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Rows | 3 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Material | Brass |
| Shielding | Shielded |
| Voltage Rating | 300 VAC/DC |
