94848
Active3M Electronic Specialty
CONN RING CIR 10-12AWG 3/8 1=1PC
94848
Active3M Electronic Specialty
CONN RING CIR 10-12AWG 3/8 1=1PC
Description
General part information
94848

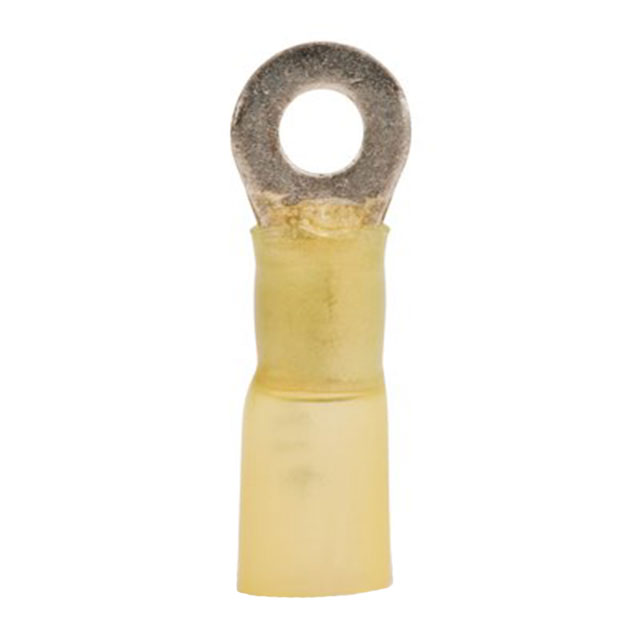

Ring Terminal Connector 3/8 Stud Circular 10-12 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | 94848 |
|---|---|
| Color | Yellow |
| Features | Brazed Seam |
| Insulation | Insulated with Heat Shrink |
| Length - Overall | 1.2 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.375 in |
| Stud/Tab Size | 3 Stud, 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.04 in |
| Width - Outer Edges | 0.59 in |
| Wire Gauge (AWG) (Max) | 12 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
