9001KR9BH13
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
9001KR9BH13
ActiveSCHNEIDER ELECTRIC
PUSH BUTTON 600VAC 10A 30MM T-K ROHS COMPLIANT: YES
Description
General part information
9001KR9BH13

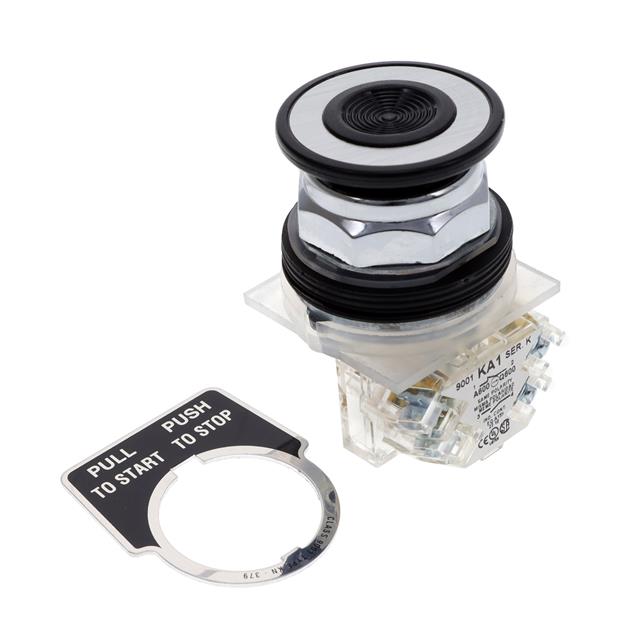

Pushbutton Switch SPDT Standard Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 9001KR9BH13 |
|---|---|
| Actuator Type | Button, Round, Mushroom |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating | 550 mA, 3 A |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 30 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-On |
| Termination Style | Screw Terminal |
| Type | Standard |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 125 V |
