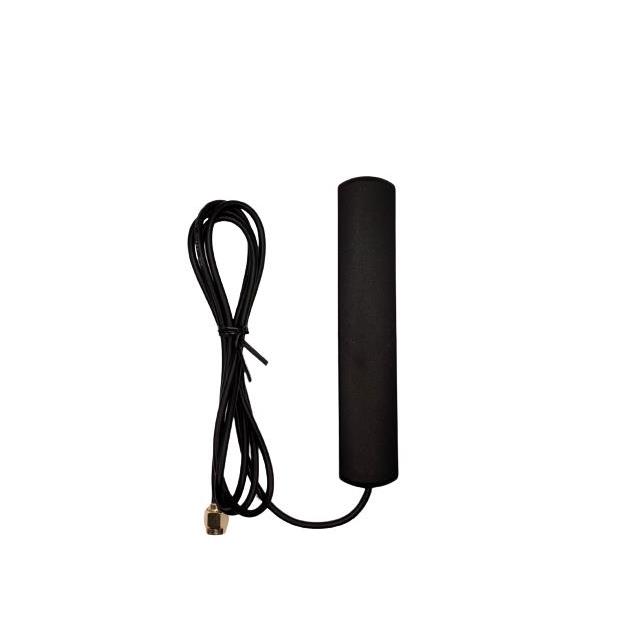

ST0227-41-501-A

ST0227-41-501-A

Active
McGill Microwave Systems

RF ANTENNA EXTERNAL WI-FI DUAL-B

Find alt
ST0227-41-501-A

ST0227-41-501-A

Active
McGill Microwave Systems

RF ANTENNA EXTERNAL WI-FI DUAL-B

Find alt

Description

General part information

ST0227-41-501-A

2.45GHz, 5.4875GHz Wi-Fi Flat Bar RF Antenna 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz 3dBi, 2dBi RP-SMA Connector Mount

Technical Specifications

Parameters and characteristics for this part

SpecificationST0227-41-501-A
Antenna TypeFlat Bar
ApplicationsWi-Fi
Features1m, Cable
Frequency (Band)5.4875 GHz
Frequency (Center)2.45 GHz
Frequency GroupSHF, UHF
Frequency Group Maximum (UHF)3 GHz
Frequency Group Minimum (SHF)4 GHz
Frequency Group Minimum (UHF)2 GHz
Frequency Range (Band 1) Maximum2.5 GHz
Frequency Range (Band 1) Minimum2.4 GHz
Frequency Range (Band 2) Maximum5.825 GHz
Frequency Range (Band 2) Minimum5.15 GHz
Gain3dBi, 2dBi
Gain2 dBi, 3 dBi
Height (Max)0.276 in
Mounting TypeConnector Mount
Number of Bands2
Power - Max2 VA
Return Loss-10 dB
RF Family/StandardWiFi
TerminationRP-SMA
