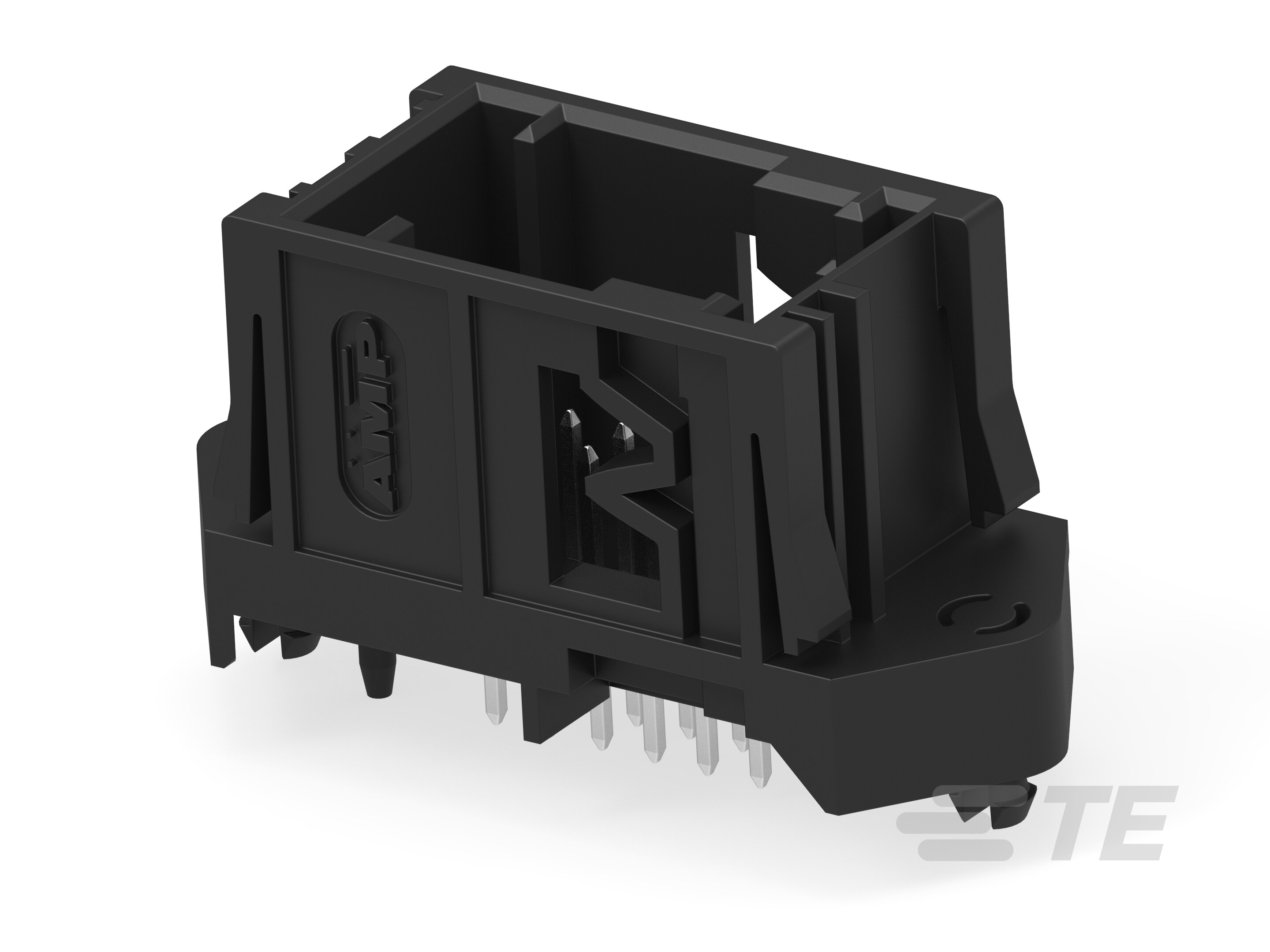

ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
1379114-1
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
Description
General part information
1379114-1
Vertical, Wire-to-Board, 12 Position, 2 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, 7.5A Contact Current Rating (Max), Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 1379114-1 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.134 in |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Friction Lock |
| Features | Mating Flange, Board Lock |
| Insulation Color | Black |
| Insulation Height | 0.799 in |
| Insulation Material | Syndiotactic Polystyrene (SPS), Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
