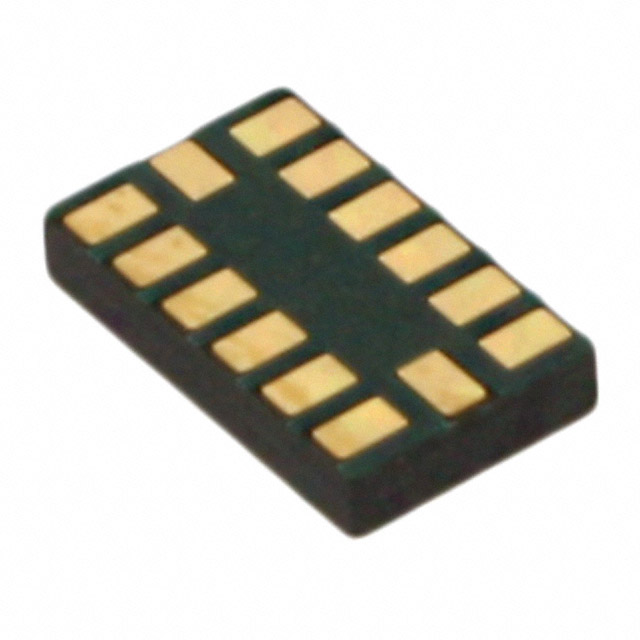

KXSS5-4457-FR
ObsoleteKionix Inc.
ACCEL 3G ANALOG/I2C/SPI 14LGA
KXSS5-4457-FR
ObsoleteKionix Inc.
ACCEL 3G ANALOG/I2C/SPI 14LGA
Description
General part information
KXSS5-4457-FR
Accelerometer X, Y, Z Axis ±3g 1kHz 14-LGA (3x5)
Technical Specifications
Parameters and characteristics for this part
| Specification | KXSS5-4457-FR |
|---|---|
| Acceleration Range (Maximum) | 3 g |
| Acceleration Range (Minimum) | -3 g |
| Axis | Y, Z, X |
| Bandwidth | 1 kHz |
| Features | Adjustable Bandwidth, Selectable Low Pass Filter |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | SPI, Analog, I2C |
| Package / Case | 14-VFLGA |
| Package Length | 3 mm |
| Package Name | 14-LGA |
| Package Width | 5 mm |
| Sensitivity (LSB/g) | 546 LSB/g |
| Sensitivity (mV/g) | 240 mV/g |
| Type | Digital, Analog |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 1.7 V |
