1-2289748-8
ActiveTE Connectivity AMP Connectors
58POS, MIXED,REC HSG,ASSY
1-2289748-8
ActiveTE Connectivity AMP Connectors
58POS, MIXED,REC HSG,ASSY
Description
General part information
1-2289748-8

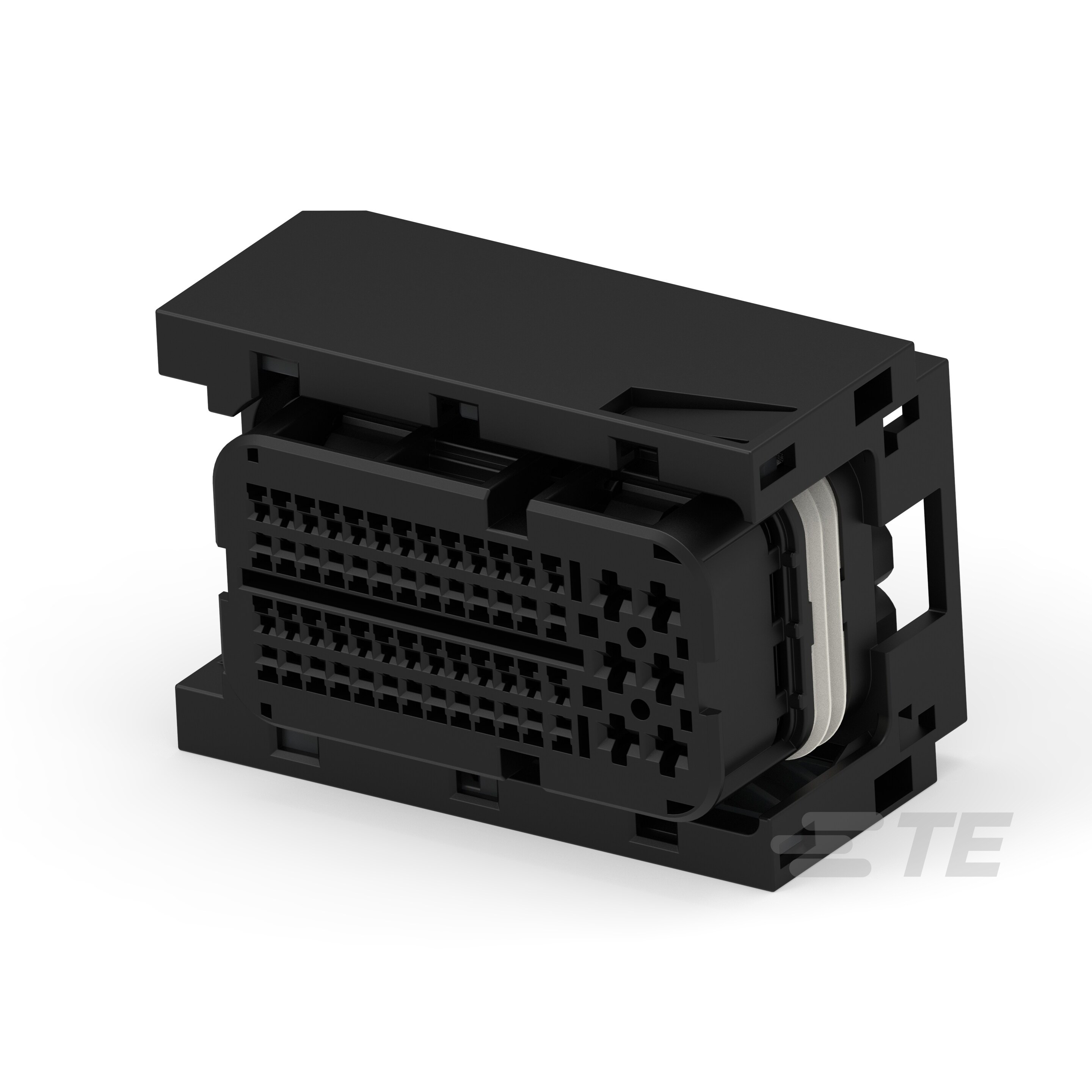

58 Position Housing, Housing for Female Terminals, Wire-to-Board, 2.5 mm / 5 mm [.098 in / .197 in] Centerline, Sealable, Black, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-2289748-8 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Nylon 6/6, Polyamide (PA66), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 58 |
| Number of Rows | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
