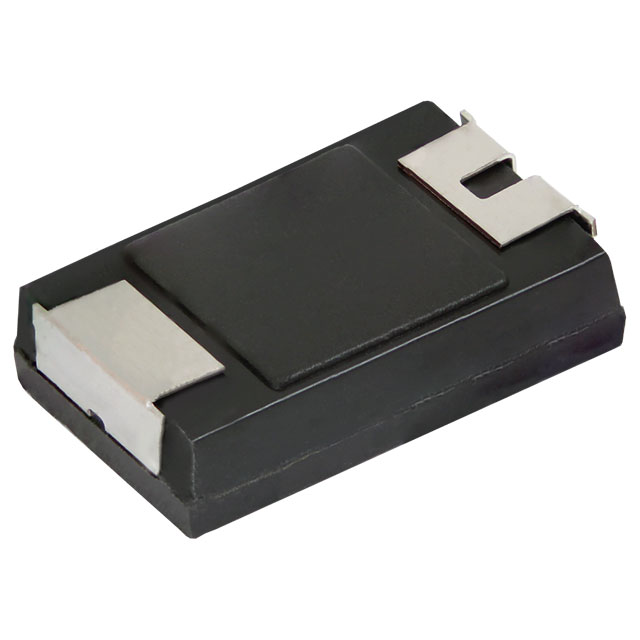

Specification	T55Z227M004C0018

Capacitance	220 µF
ESR (Equivalent Series Resistance)	18 mOhm
Features	General Purpose
Height - Seated (Max)	0.075 in
Lifetime	2000 Hrs
Manufacturer Size Code	Z
Mounting Type	Surface Mount
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	2917 (7343 Metric)
Size / Dimension Length	0.287 in
Size / Dimension Width	0.169 in
Tolerance	20 %
Type	Molded
Voltage - Rated	4 V
