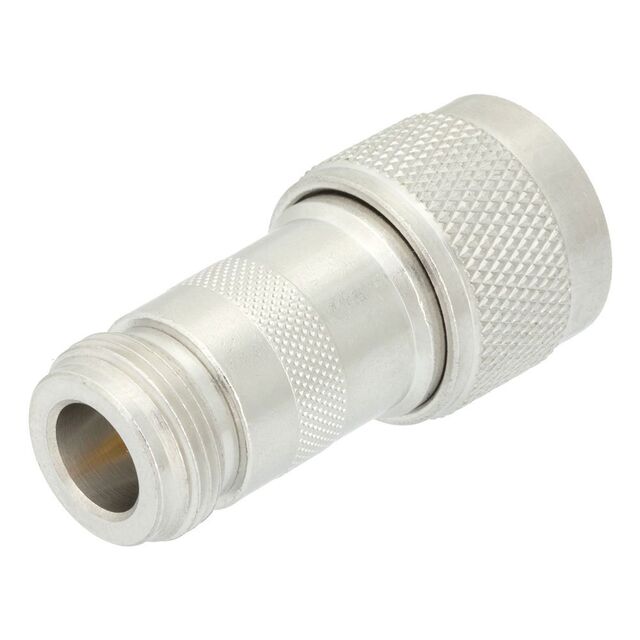

SM5818
ActiveFairview Microwave
ADAPT PLUG-JACK TYPE N
SM5818
ActiveFairview Microwave
ADAPT PLUG-JACK TYPE N
Description
General part information
SM5818
Adapter Coaxial Connector RP-N Jack, Male Pin To N Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM5818 |
|---|---|
| Adapter Series | RP-N to N |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, RP-N Jack |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Type | N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 11 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
