Description
General part information

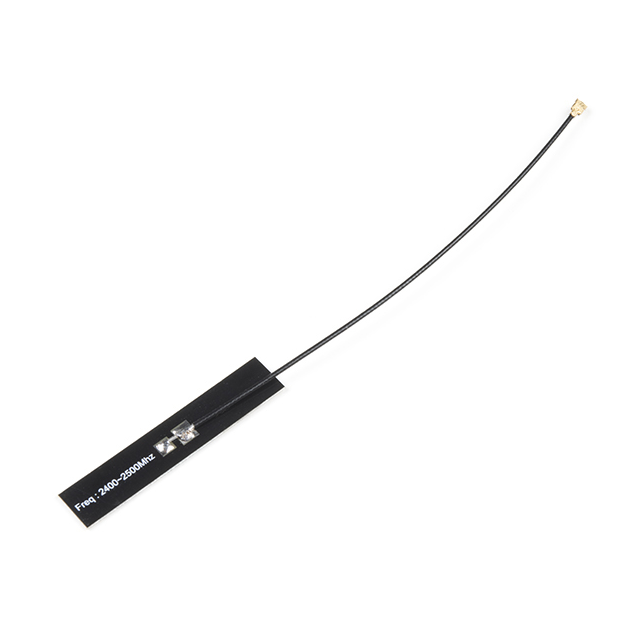

WRL-18086
RF ANTENNA PCB Trace MMCX, U.FL (UMCC), IPEX MHF4 Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-18086 |
|---|---|
| Antenna Type | PCB Trace |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 30 W |
| Termination | MMCX, U.FL (UMCC), IPEX MHF4 |
| VSWR | 1.8 |
