AQP-1700
ActivePasternack
CONQMA PLUG R/A CRIMP LMR195
AQP-1700
ActivePasternack
CONQMA PLUG R/A CRIMP LMR195
Description
General part information
AQP-1700

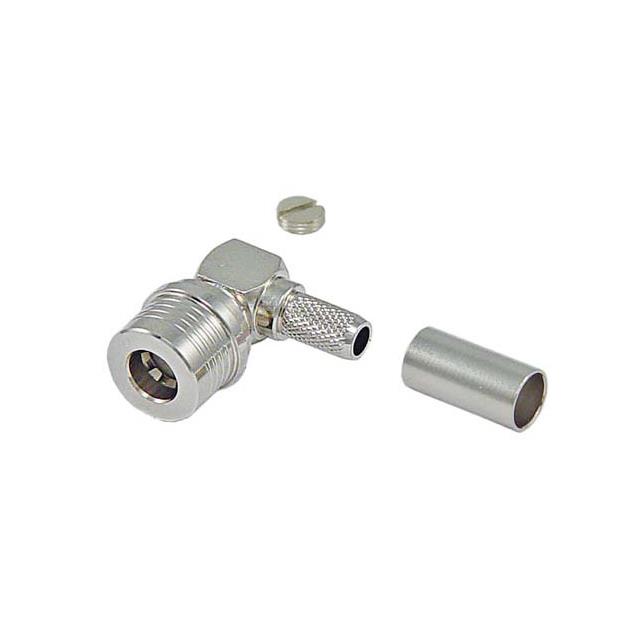

QMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | AQP-1700 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | LMR-195, RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | QMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 18 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mating Cycles | 100 cycles |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
