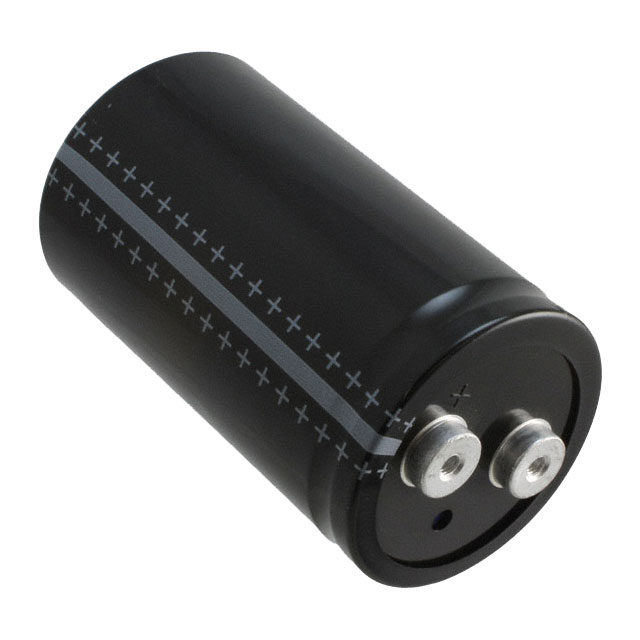

Specification	B43310A5478M000

Applications	General Purpose
Capacitance	4700 µF
ESR (Equivalent Series Resistance)	41 mOhm
Height - Seated (Max)	5.118 in
Lead Spacing	1.248 in
Lifetime	2000 Hrs
Mounting Type	Chassis Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Screw Terminals, Radial
Polarization	Polar
Ripple Current	11.2 A
Size / Dimension Diameter	3.028 in
Tolerance	20 %
Voltage - Rated	450 V
