MAL204131229E3
ActiveVishay Dale

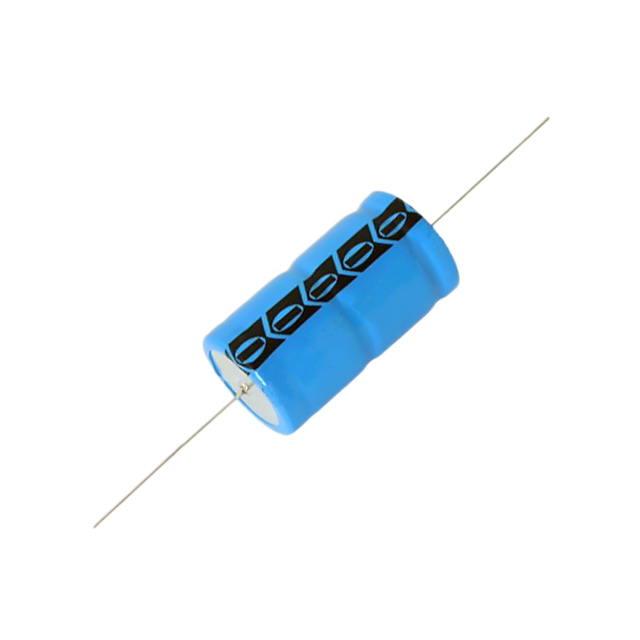

CAP ALUM 22UF 160V AXIAL TH
MAL204131229E3
ActiveVishay Dale
CAP ALUM 22UF 160V AXIAL TH
Description
General part information
MAL204131229E3
22 µF 160 V Aluminum Electrolytic Capacitors Axial, Can 11Ohm @ 100Hz 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL204131229E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 22 µF |
| ESR (Equivalent Series Resistance) | 11 Ohm |
| Impedance | 5.5 Ohms |
| Lifetime | 5000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 150 mA |
| Size / Dimension Diameter | 0.394 in |
| Size / Dimension Length | 0.984 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 160 V |
