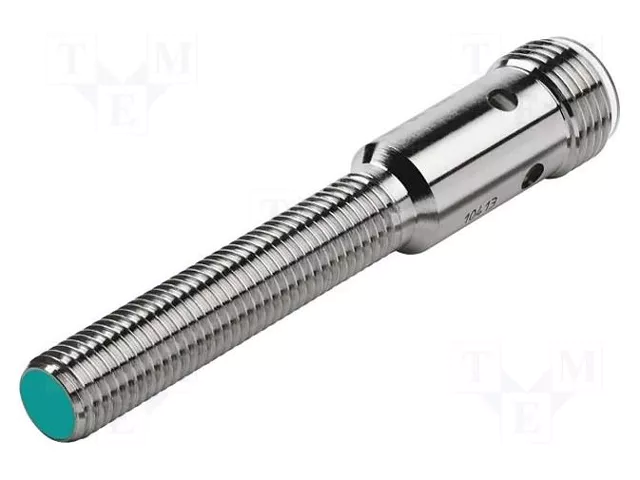

NBB2-8GM40-E0-V1
ActivePepperl+Fuchs, Inc.
SENSOR: INDUCTIVE; OUT: NPN / NO; 0÷2MM; 10÷30VDC; M8; IP67; 100MA
NBB2-8GM40-E0-V1
ActivePepperl+Fuchs, Inc.
SENSOR: INDUCTIVE; OUT: NPN / NO; 0÷2MM; 10÷30VDC; M8; IP67; 100MA
Description
General part information
NBB2-8GM40-E0-V1
SENSOR: INDUCTIVE; OUT: NPN / NO; 0÷2MM; 10÷30VDC; M8; IP67; 100MA
Technical Specifications
Parameters and characteristics for this part
| Specification | NBB2-8GM40-E0-V1 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | NPN-NO |
| Package / Case | Cylinder, Threaded - M8 |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 5 V |
