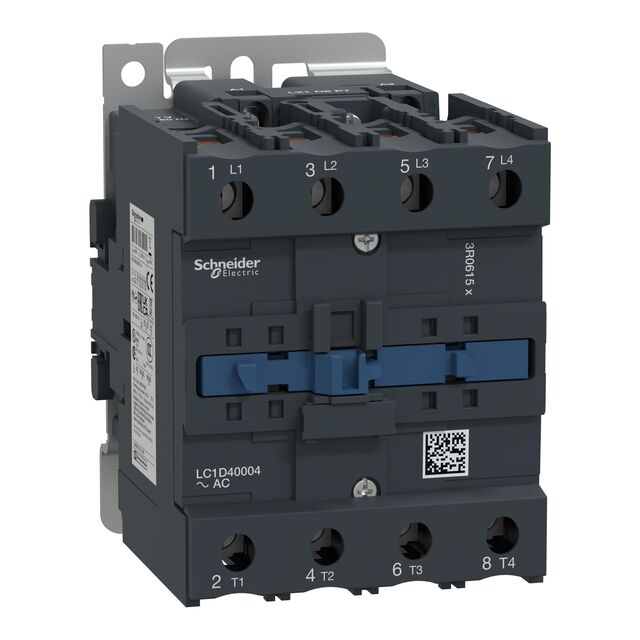

LC1D40004G6
ActiveSCHNEIDER ELECTRIC
CONTACTOR
LC1D40004G6
ActiveSCHNEIDER ELECTRIC
CONTACTOR
Description
General part information
LC1D40004G6
CONTACTOR
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D40004G6 |
|---|---|
| Coil Voltage | 120 V |
| Contact Form | 4 Form A, PST-NO |
| Contact Rating (Current) | 60 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 102 VAC |
| Must Release Voltage | 36 VDC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -5 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
