RDBF252-13

Diodes Inc

BRIDGE RECTIFIER DBF T&R 3K

Search across all available documentation for this part.

Diodes Inc

BRIDGE RECTIFIER DBF T&R 3K

Technical Specifications

Parameters and characteristics for this part

Specification	RDBF252-13

Current - Average Rectified (Io)	2.5 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

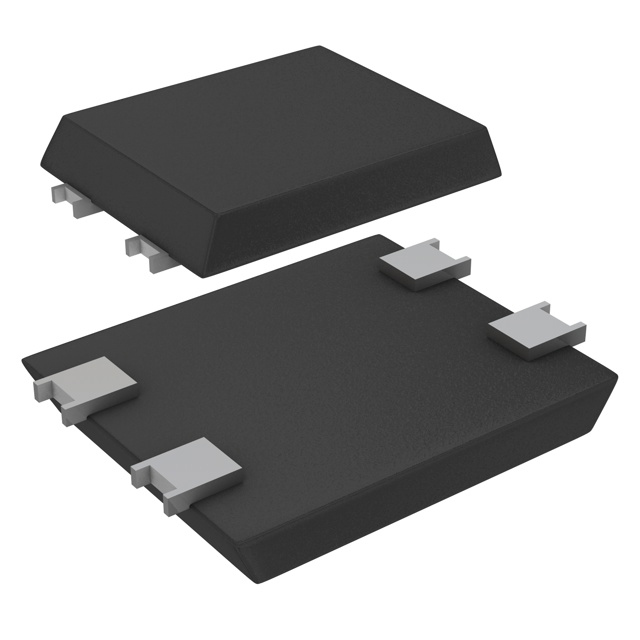

Package / Case	4-SMD, Flat Leads
Supplier Device Package	DBF
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.3 V
Voltage - Peak Reverse (Max) [Max]	200 V

Part	Mounting Type	Package / Case	Technology	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]	Current - Average Rectified (Io)	Diode Type	Voltage - Peak Reverse (Max) [Max]
Diodes Inc RDBF252-13	Surface Mount	4-SMD Flat Leads	Standard	1.3 V	DBF	5 µA	-55 °C	150 °C	2.5 A	Single Phase	200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 200 V Surface Mount DBF

Technical documentation and resources

No documents available
