T37163-03-0

Active

Curtis Industries

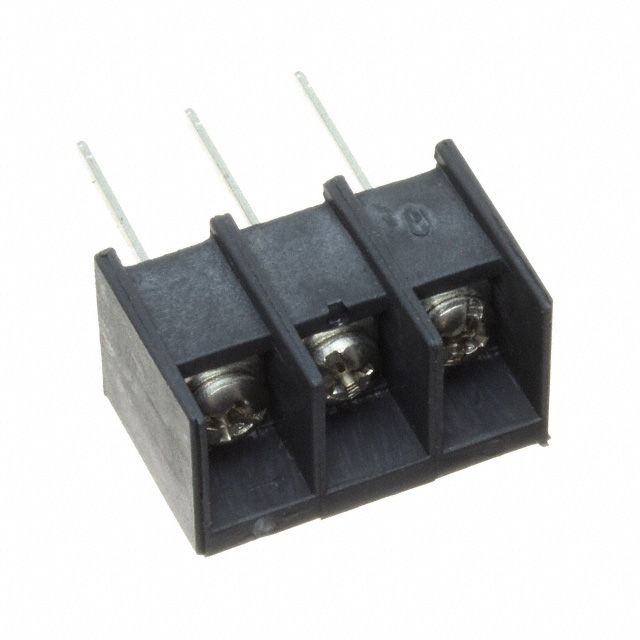

CONN BARRIER STRIP 3CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37163-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.55
		10	$ 1.17
		25	$ 1.08
		50	$ 0.98
		100	$ 0.95
		250	$ 0.84

Description

General part information

T37163 Series

3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T37163-03-0	T37163 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Wire Wrap	Wire Wrap
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	3	2 - 23
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	3	2 - 8
Number of Wire Entries	-	22 - 23
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Material	Steel, Stainless	Steel, Stainless
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

T37163 Series

CONN BARRIER STRIP 4CIRC 0.375"

Part	Material - Insulation	Terminal Block Type	Barrier Type	Pitch [x]	Pitch [x]	Voltage Rating	Number of Circuits	Mounting Type	Terminal Screw Material	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Top Termination	Current Rating (Amps)	Operating Temperature	Number of Rows	Number of Wire Entries	Bottom Termination	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries T37163-04-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	4	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1	4	Wire Wrap
Curtis Industries T37163-02-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	2	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1	2	Wire Wrap
Curtis Industries T37163-23-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	23	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1		Wire Wrap	23
Curtis Industries T37163-22-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	22	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1		Wire Wrap	22
Curtis Industries T37163-03-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	3	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1	3	Wire Wrap
Curtis Industries T37163-05-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	5	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1	5	Wire Wrap
Curtis Industries T37163-07-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC	7	Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1	7	Wire Wrap
Curtis Industries T37163-08-0	Polypropylene (PP)	Barrier Block	3 Wall (Tri)	9.53 mm	0.375 in	300 VDC		Chassis, Panel, Through Hole	Stainless, Steel	UL94 V-0	12 AWG	22 AWG	Screws	20 A	105 C	1	8	Wire Wrap		8
