A5839H

Active

Antenova

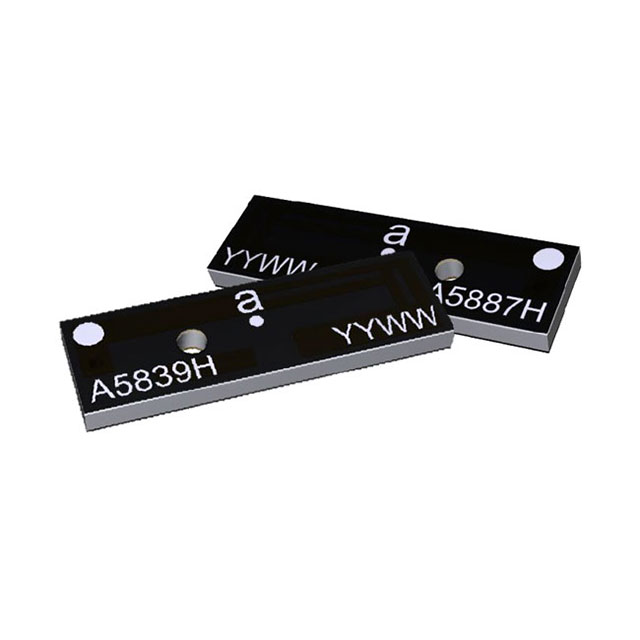

A5839H RUFA LEFT 2.4 GHZ SMD HAL

Search across all available documentation for this part.

Active

Antenova

A5839H RUFA LEFT 2.4 GHZ SMD HAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A5839H	A5839 Series

Antenna Type	PCB Trace	PCB Trace
For Use With/Related Products	-	A5839H
Frequency	-	2.5 GHz
Frequency	-	2.4 GHz
Frequency Range [Max]	2.5 GHz	2.5 GHz
Frequency Range [Min]	2.4 GHz	2.4 GHz
Height (Max) [Max]	0.043 in	0.043 in
Height (Max) [Max]	1.1 mm	1.1 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	1.8	1.8

A5839H RUFA LEFT 2.4 GHZ SMD HAL

Part	Height (Max) [Max]	Height (Max) [Max]	Termination	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	VSWR	Number of Bands	Mounting Type	Frequency [Max]	Frequency [Min]	Type	Supplied Contents	For Use With/Related Products
Antenova A5839H	0.043 in	1.1 mm	Solder	PCB Trace	2.5 GHz	2.4 GHz	1.8	1	Surface Mount
Antenova A5839H-EVB-1										2.5 GHz	2.4 GHz	Antenna	Board(s)	A5839H

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA PCB Trace Solder Surface Mount
