PRBSA1-16F-BB000
ActiveTE Connectivity AMP Connectors
ROCKER SWITCHES SPST ON-OFF QC PNL PWR ROCKER SWITCH
PRBSA1-16F-BB000
ActiveTE Connectivity AMP Connectors
ROCKER SWITCHES SPST ON-OFF QC PNL PWR ROCKER SWITCH
Description
General part information
PRBSA1-16F-BB000

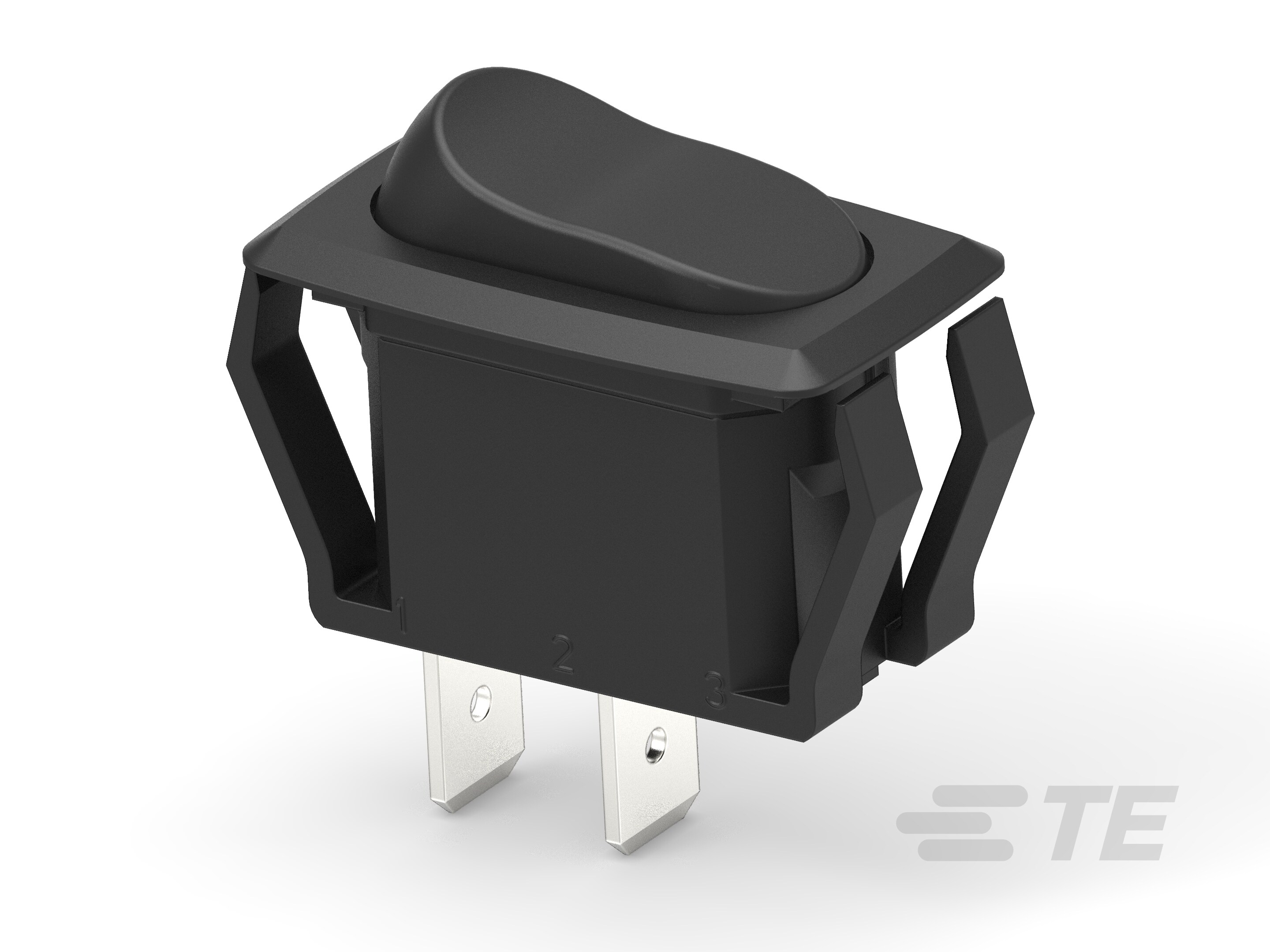

High Power Rocker Switch, Panel Mount, 13.8 x 27.6 mm [.545 x 1.086 in] Panel Cutout, Silver Contact Plating
Technical Specifications
Parameters and characteristics for this part
| Specification | PRBSA1-16F-BB000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Curved) |
| Approval Agency | UL |
| Circuit | SPST |
| Color - Actuator/Cap | Black |
| Current Rating | 16 A |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Panel Cutout Length | 27.6 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 13.8 mm |
| Quick Connect Size (0.250") | 0.25 in |
| Switch Function | On-Off |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 125 V |
