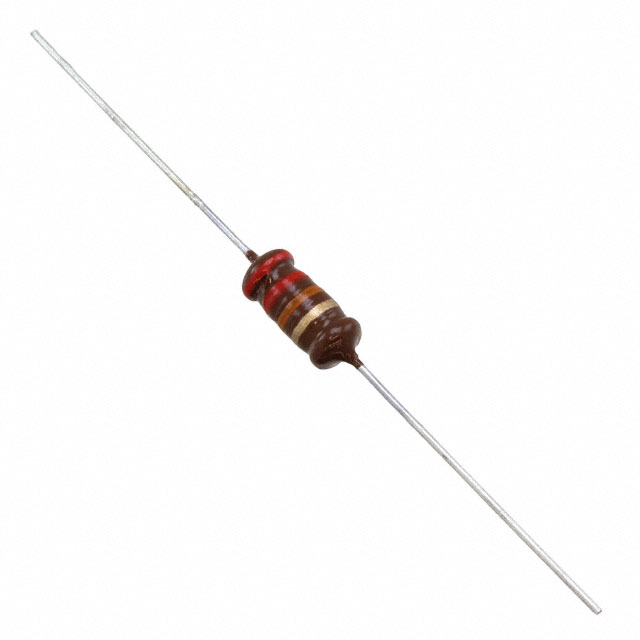

B82145A1105J000
LTBEPCOS - TDK Electronics
FIXED IND 1MH 370MA 3.6 OHM TH
B82145A1105J000
LTBEPCOS - TDK Electronics
FIXED IND 1MH 370MA 3.6 OHM TH
Description
General part information
B82145A1105J000
1 mH Unshielded Drum Core, Wirewound Inductor 370 mA 3.6Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82145A1105J000 |
|---|---|
| Current Rating | 0.37 A |
| DC Resistance (DCR) (Max) | 3.6 Ohm |
| Frequency - Self Resonant | 1.3 MHz |
| Inductance | 1 mH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.472 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
