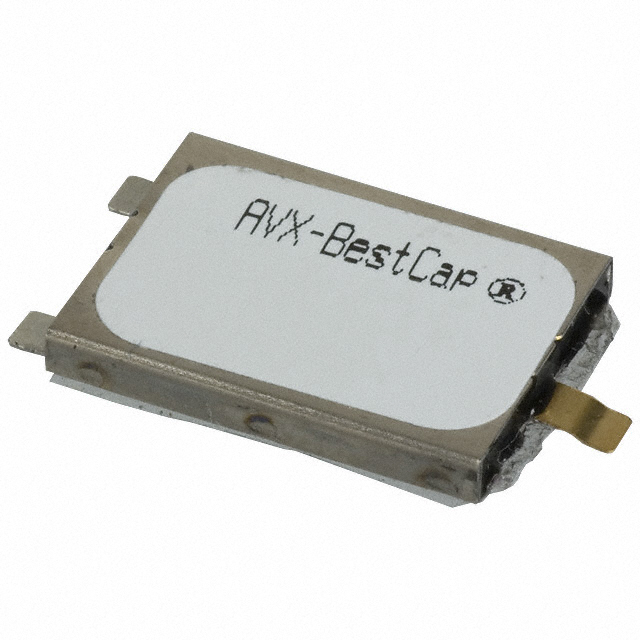

BZ05CA103ZSB
ObsoleteKYOCERA AVX
CAP 10MF -20% +80% 12V SMD
BZ05CA103ZSB
ObsoleteKYOCERA AVX
CAP 10MF -20% +80% 12V SMD
Description
General part information
BZ05CA103ZSB
10 mF (EDLC) Supercapacitor 12 V BZ05, 3 Lead 500mOhm 1000 Hrs @ 70°C
Technical Specifications
Parameters and characteristics for this part
| Specification | BZ05CA103ZSB |
|---|---|
| Capacitance | 10 mF |
| ESR (Equivalent Series Resistance) | 500 mOhm |
| Height - Seated (Max) | 0.256 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 3 Lead |
| Package Name | BZ05 |
| Size / Dimension Length | 0.787 in |
| Size / Dimension Width | 0.591 in |
| Termination | SMD (SMT) Tabs |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 12 VAC |
