TYS40202R2N-10
ActiveLaird Technologies EMI
FIXED IND 2.2UH 1.85A 40MOHM SMD
TYS40202R2N-10
ActiveLaird Technologies EMI
FIXED IND 2.2UH 1.85A 40MOHM SMD
Description
General part information
TYS40202R2N-10

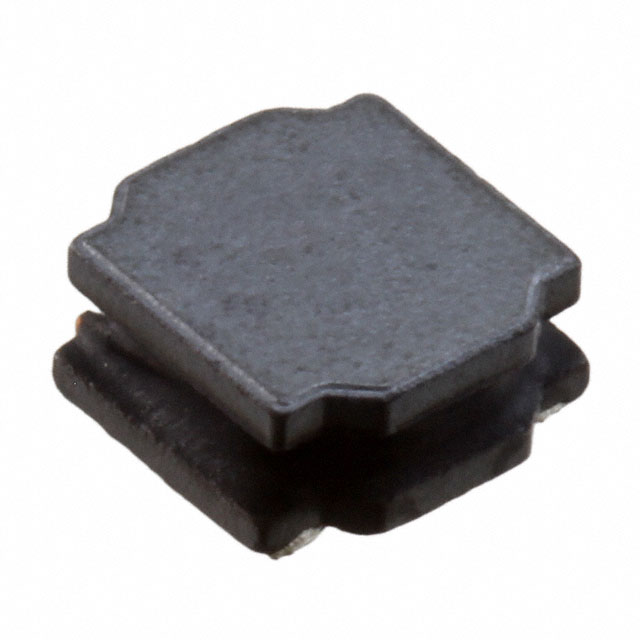

2.2 µH Shielded Inductor 1.85 A 40mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | TYS40202R2N-10 |
|---|---|
| Current - Saturation (Isat) | 3.4 A |
| Current Rating | 1.85 A |
| DC Resistance (DCR) (Max) | 40 mOhm |
| Frequency - Self Resonant | 49 MHz |
| Height - Seated (Max) | 0.079 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.157 in |
| Size / Dimension Width | 0.157 in |
| Tolerance | 30 % |
