Description

General part information

511-3M

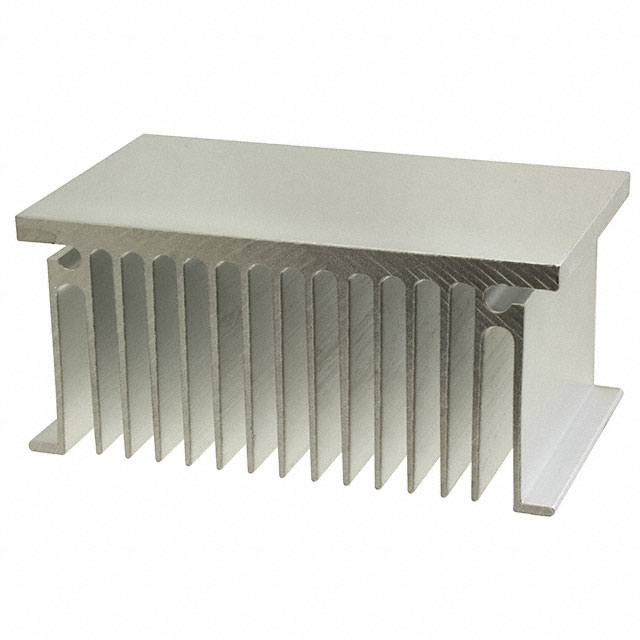

Heat Sink Power Modules Aluminum Top Mount

Technical Specifications

Parameters and characteristics for this part

Specification511-3M
Attachment MethodAdhesive
Fin Height2.35 in
Length3 "
MaterialAluminum
Package CooledPower Modules
ShapeFins, Rectangular
Thermal Resistance0.9 °C/W
TypeTop Mount
Width5.21 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Extruded Heat Sinks Catalog
Datasheet
