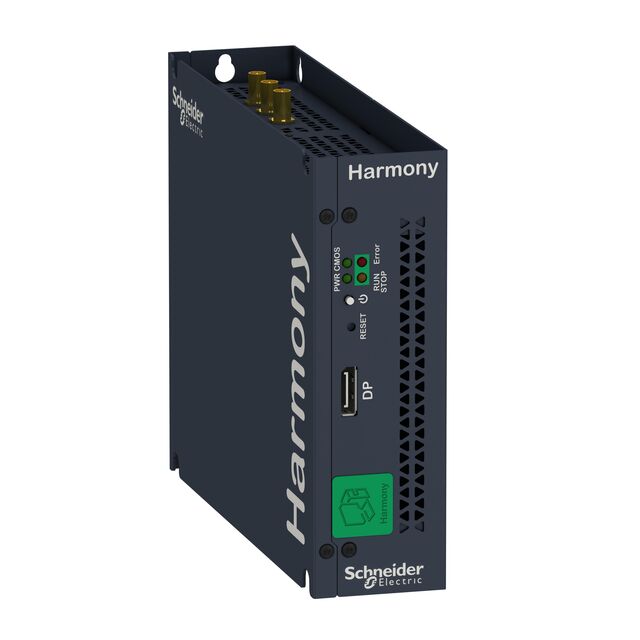

HMIBMIEA5DD110L
ActiveSCHNEIDER ELECTRIC
BOX PC IIOT EMMC DC WINDOWS 10
HMIBMIEA5DD110L
ActiveSCHNEIDER ELECTRIC
BOX PC IIOT EMMC DC WINDOWS 10
Description
General part information
HMIBMIEA5DD110L
BOX PC IIOT EMMC DC WINDOWS 10
Technical Specifications
Parameters and characteristics for this part
| Specification | HMIBMIEA5DD110L |
|---|---|
| Approval Agency | FCC, UL, CE, EAC, cULus |
| Core Processor | Intel® Atom® E3930 |
| Core Processor Frequency | 1.8 GHz |
| Display Type | No Display |
| Expansion Type | mini PCIe |
| Ingress Protection | IP40 |
| Memory Capacity (Installed) | 4 GB |
| Memory Type | DDR3 |
| Mounting Type | Panel Mount |
| Operating System | Windows 10 |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Storage Capacity | 128 GB |
| Storage Type | eMMC |
| Type | Box PC |
| Voltage - Supply | 24 VDC |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Voltage - Supply (Option 1) | 24 VAC |
| Voltage - Supply (Range 1 Maximum) | 240 VAC |
| Voltage - Supply (Range 1 Minimum) | 100 VAC |
| Voltage - Supply (Range 2 Maximum) | 24 VDC |
| Voltage - Supply (Range 2 Minimum) | 24 VAC |
| Voltage - Supply Maximum | 240 VAC |
| Voltage - Supply Minimum | 100 VAC |
| Weight | 2.7 lbs |
