Specification	2-2342078-1

Color	Black
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.075 in
Current - UL	11 A
Features	High Temp Housing
Header Orientation	Vertical
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.362 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	21
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Positions Per Level	21
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V

2342078 Series

Part	Mounting Type	Termination Style	Color	Number of Levels	Header Orientation	Voltage - UL	Type	Contact Mating Finish	Current - UL	Pitch	Features	Positions Per Level	Number of Positions	Operating Temperature (Min)	Operating Temperature (Max)	Contact Tail Length	Material Flammability Rating	Housing Material	Insulation Height	Contact Material
TE Connectivity AMP Connectors 1-2342078-8	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	18	18	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy
TE Connectivity AMP Connectors 2-2342078-0	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	20	20	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy
TE Connectivity AMP Connectors 2-2342078-3	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	23	23	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy
TE Connectivity AMP Connectors 2342078-8	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	8	8	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy

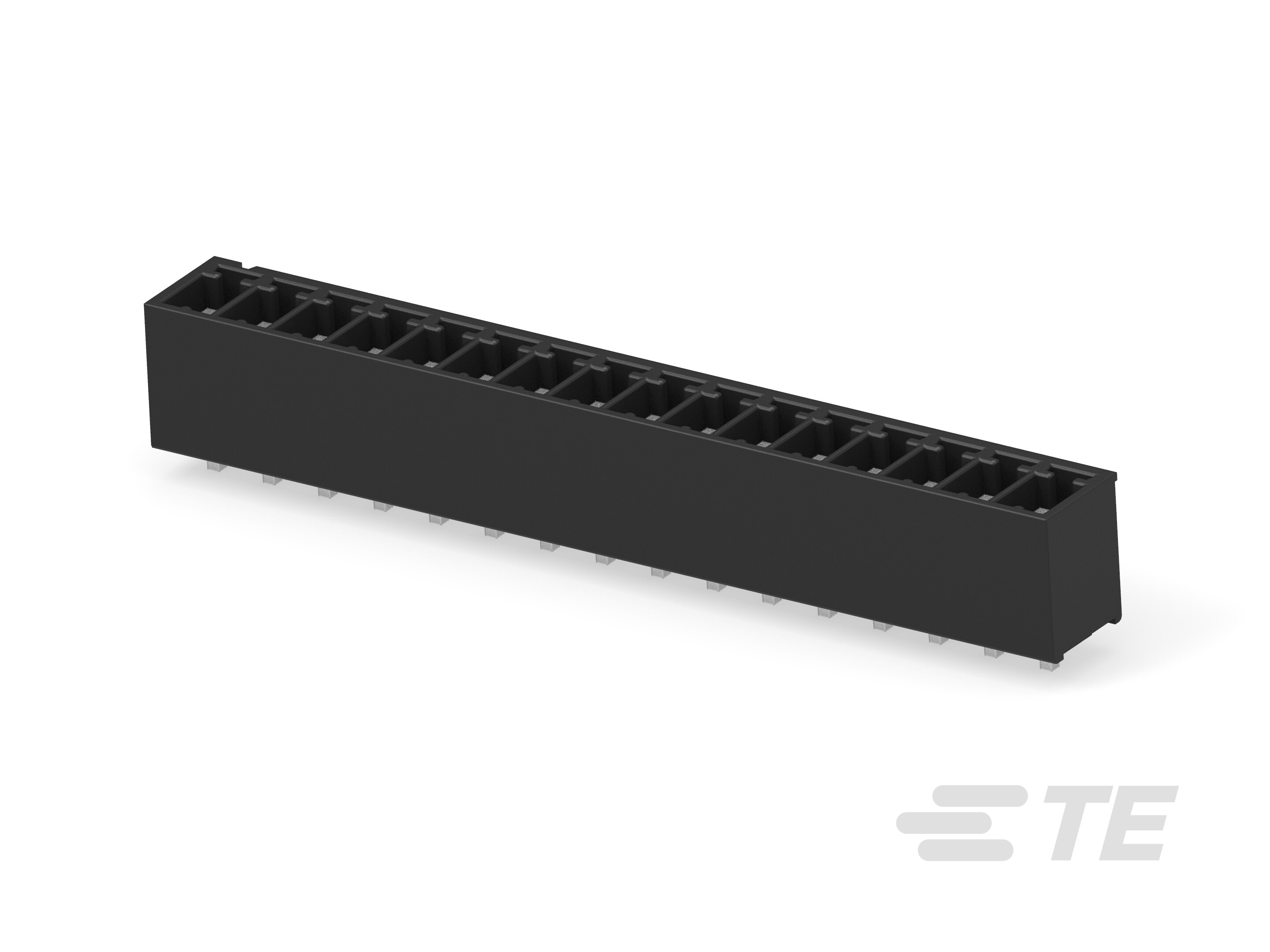

TE Connectivity AMP Connectors 1-2342078-6	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	16	16	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy
TE Connectivity AMP Connectors 2-2342078-2	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	22	22	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy

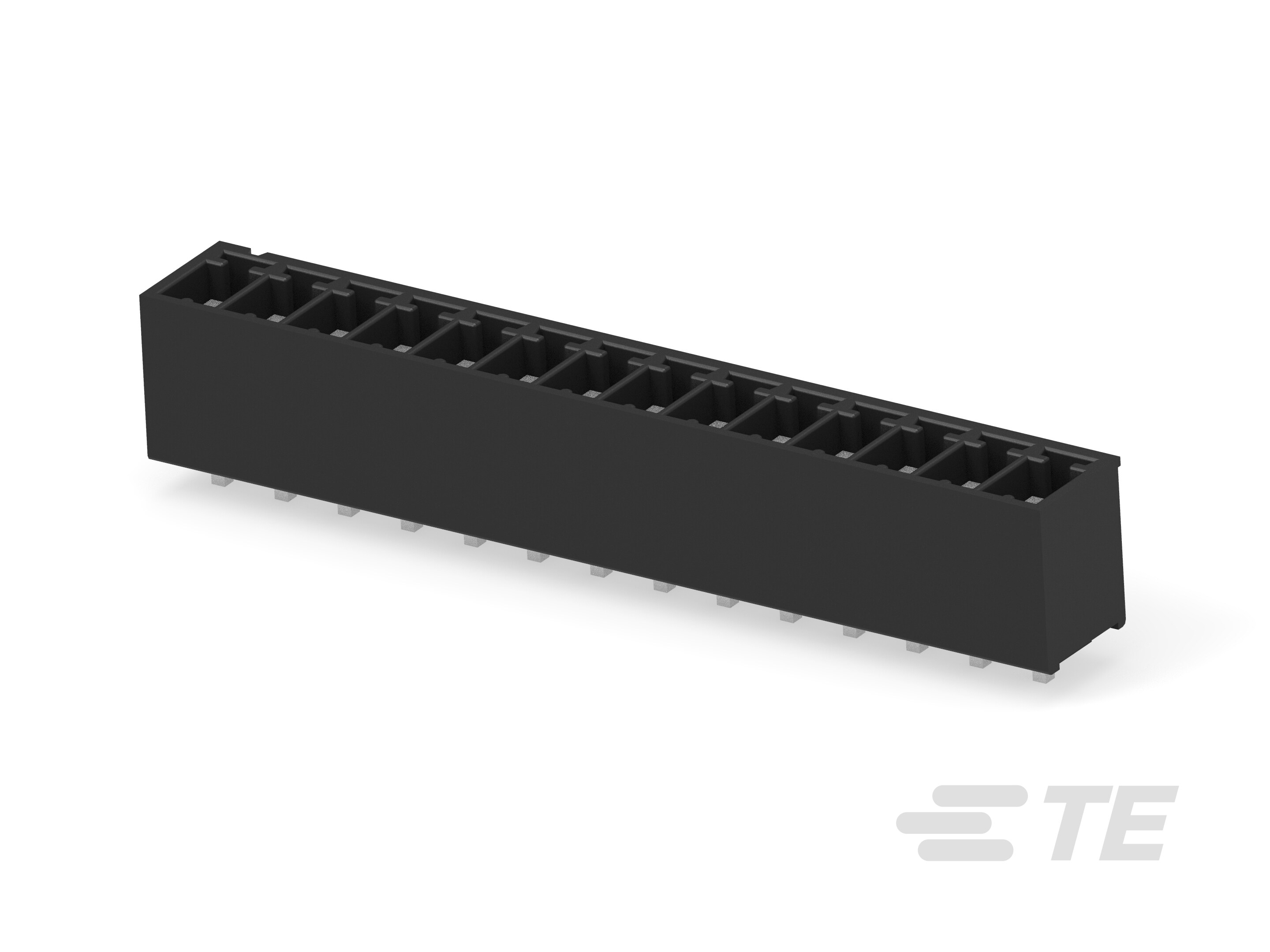

TE Connectivity AMP Connectors 1-2342078-4	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	14	14	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy

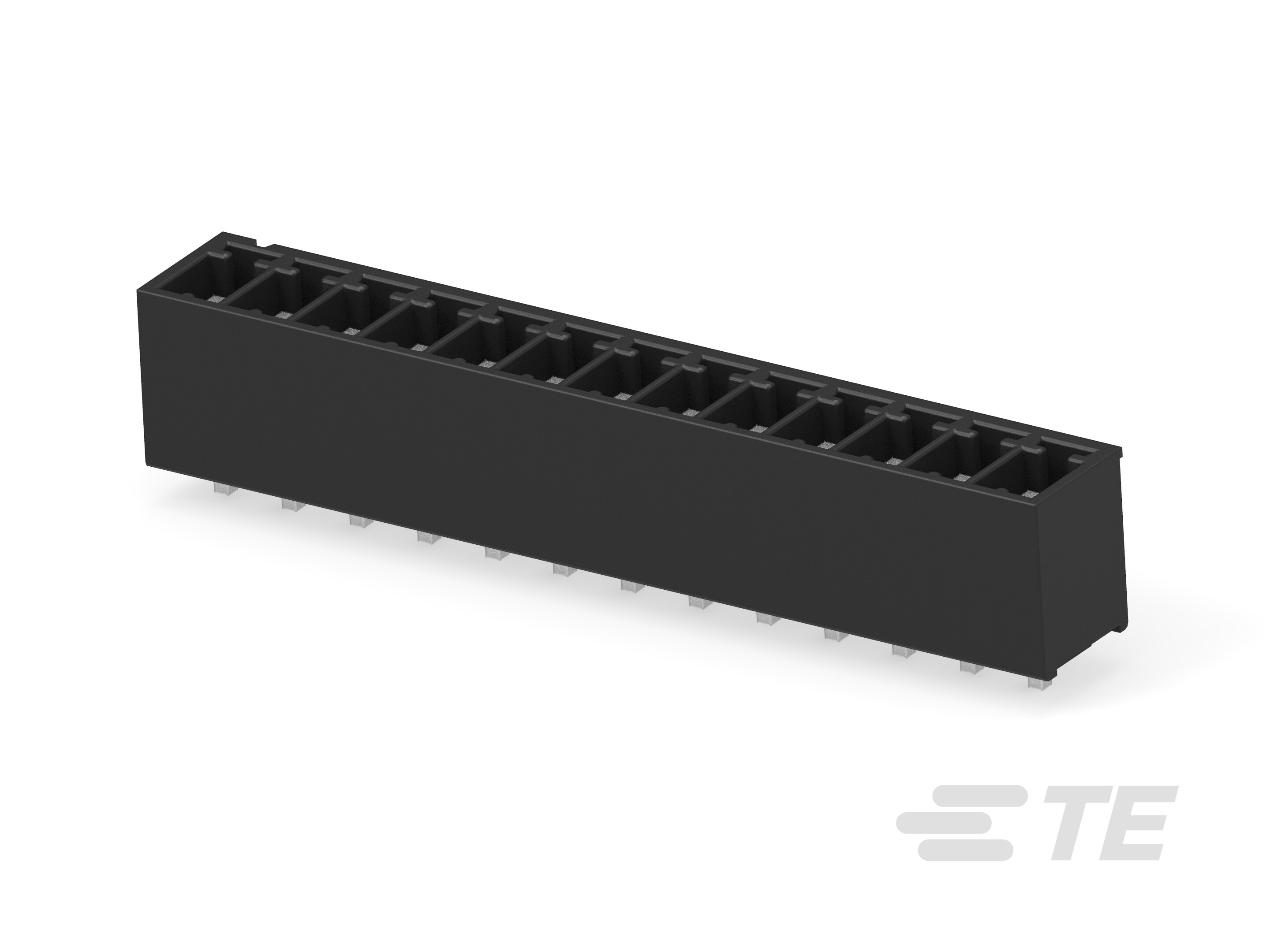

TE Connectivity AMP Connectors 1-2342078-3	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	13	13	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy
TE Connectivity AMP Connectors 2342078-2	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	2	2	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy

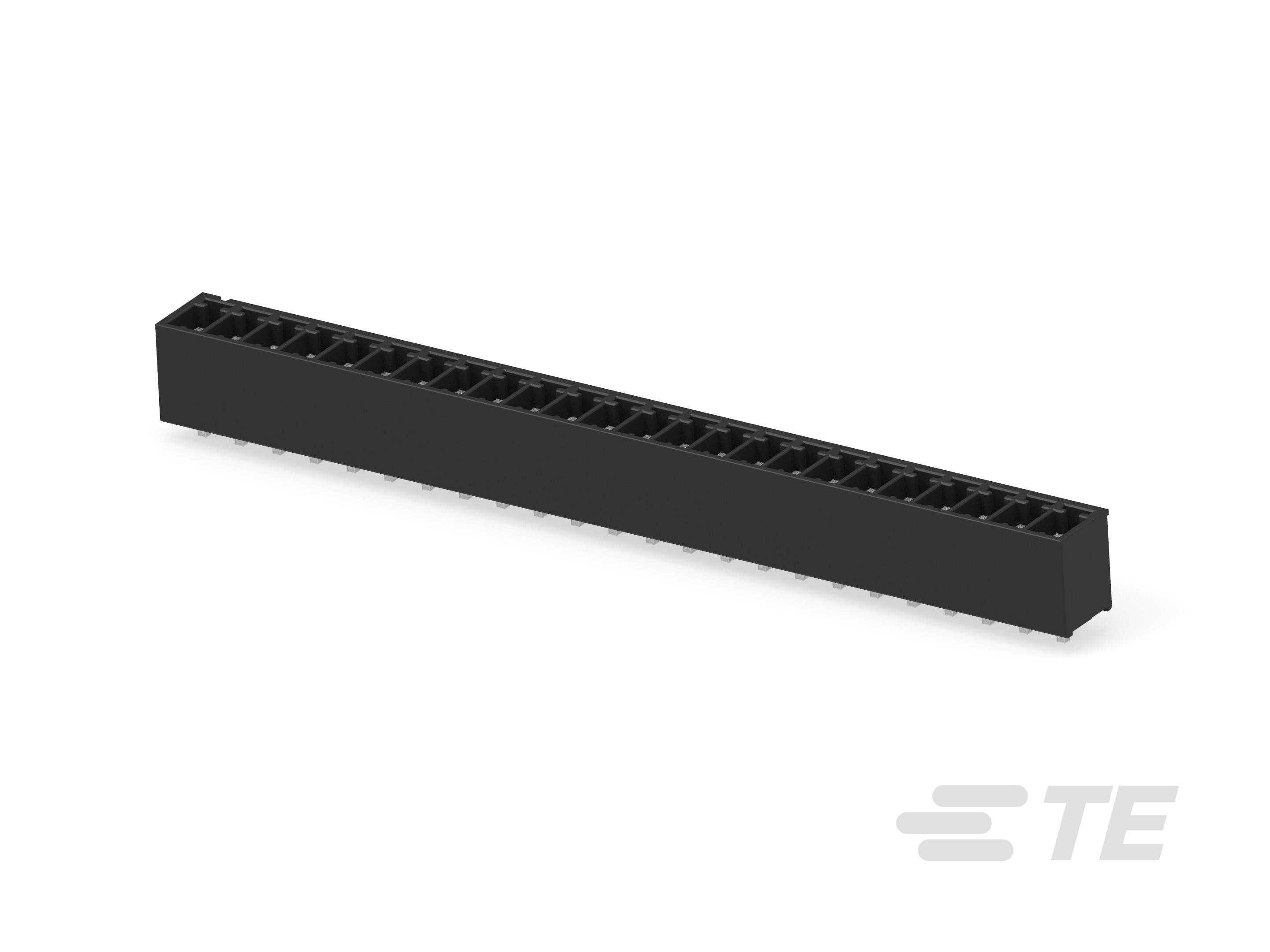

TE Connectivity AMP Connectors 2-2342078-4	Through Hole	Solder	Black	1	Vertical	300 V	Header Male Pins Shrouded (4 Side)	Tin	11 A	0.15 in	High Temp Housing	24	24 pos	-40 °C	105 °C	0.075 in	UL94 V-0	Nylon PA Polyamide	0.362 in	Copper Alloy
