MAL211925102E3
ActiveVishay Dale
CAPACITOR,1MF,16VDC,10-% TOL,50+% TOL
MAL211925102E3
ActiveVishay Dale
CAPACITOR,1MF,16VDC,10-% TOL,50+% TOL
Description
General part information
MAL211925102E3

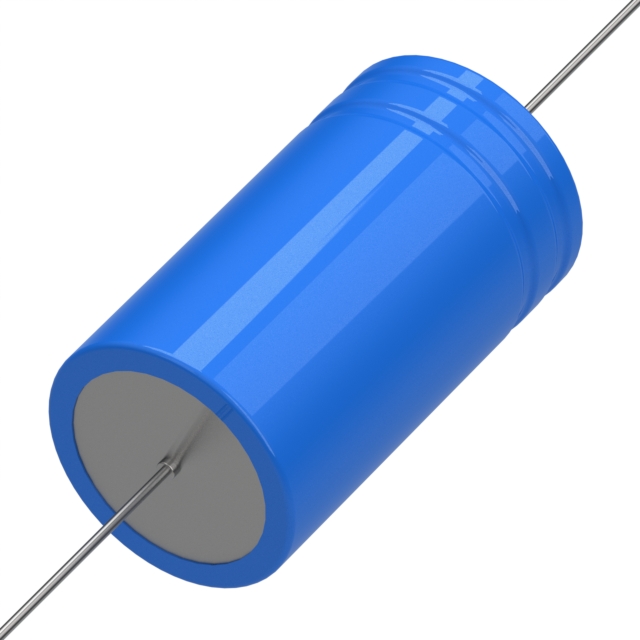

1000 µF 16 V Aluminum Electrolytic Capacitors Axial, Can 300mOhm @ 100Hz 8000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL211925102E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 µF |
| ESR (Equivalent Series Resistance) | 300 mOhm |
| Impedance | 240 mOhm |
| Lifetime | 8000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 850 mA |
| Size / Dimension Diameter | 0.591 in |
| Size / Dimension Length | 1.181 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 16 V |
