60744-2
ActiveTE Connectivity AMP Connectors
RING IS 18-14 10 .0253TPBR ROHS COMPLIANT: YES
60744-2
ActiveTE Connectivity AMP Connectors
RING IS 18-14 10 .0253TPBR ROHS COMPLIANT: YES
Description
General part information
60744-2

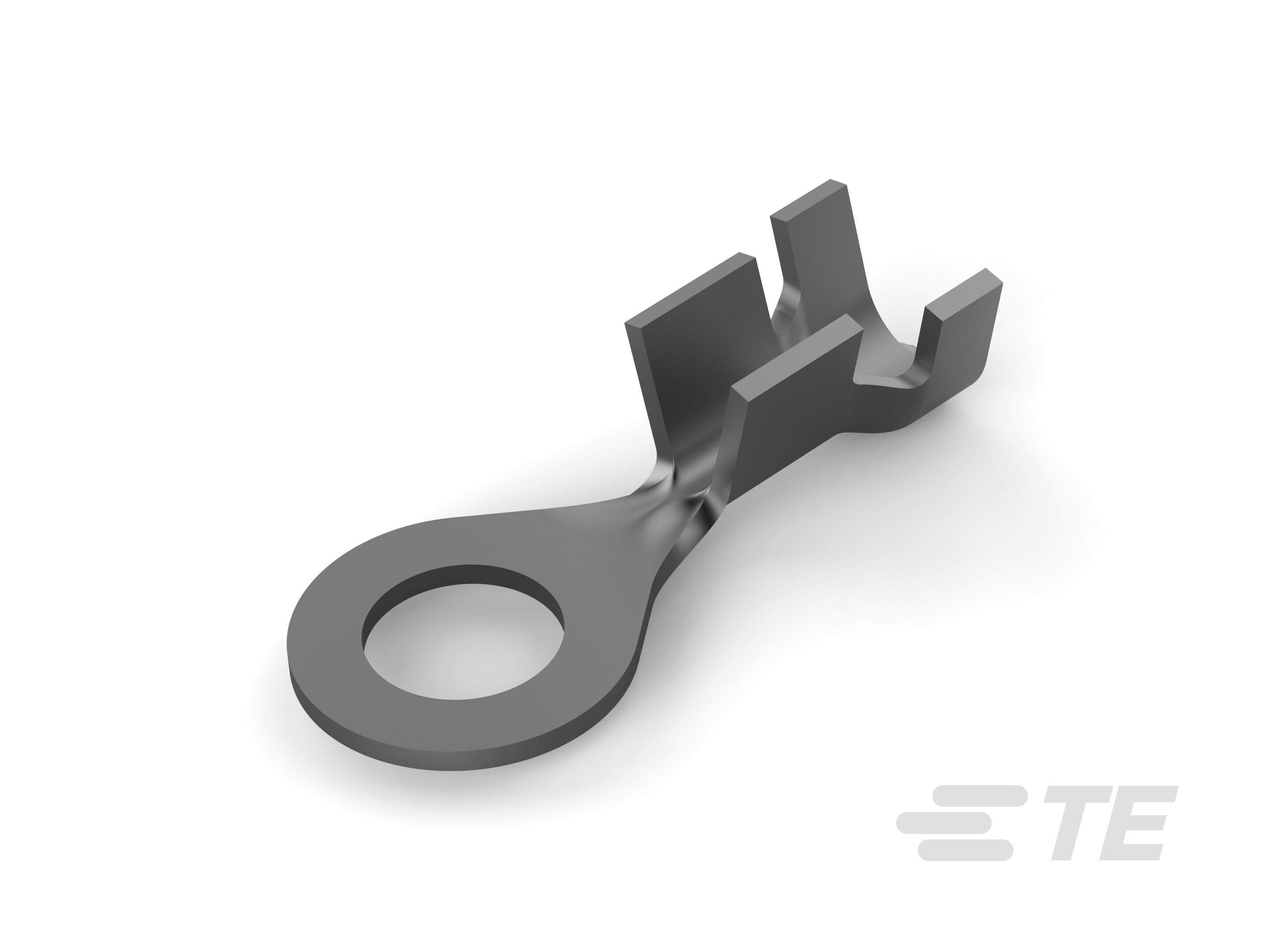

Closed Ring Tongue Terminal, 18 – 14 AWG, #10 Stud, 5 mm [.19 in / .197 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 60744-2 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Length - Overall | 0.789 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Oval |
| Termination | Crimp |
| Thickness | 0.025 in |
| Width - Outer Edges | 0.342 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
