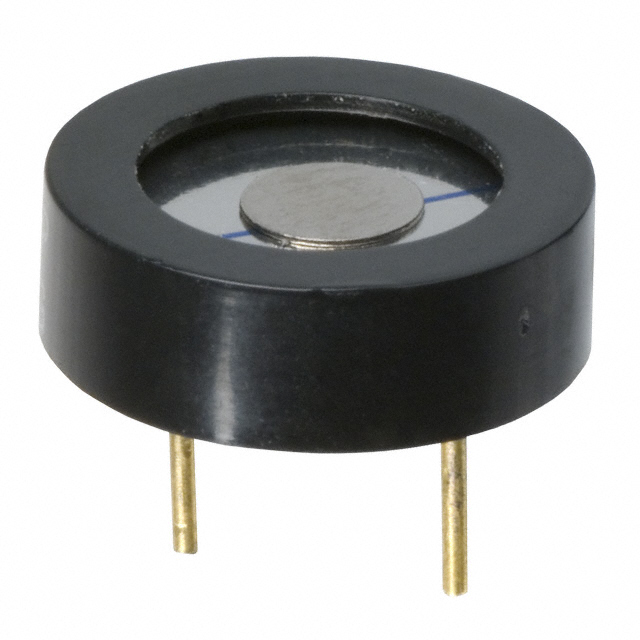

Specification	CSQ-706BP

Current - Supply	20 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	2.048 kHz
Height - Seated (Max)	0.236 in
Input Type	Zero-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Port Location	Top
Size / Dimension Diameter	0.472 in
Sound Pressure Level (SPL)	70 dB
Technology	Magnetic
Termination	PC Pins
Voltage - Rated	1.5 VDC
Voltage Range (Max)	2 V
Voltage Range (Min)	1 V
