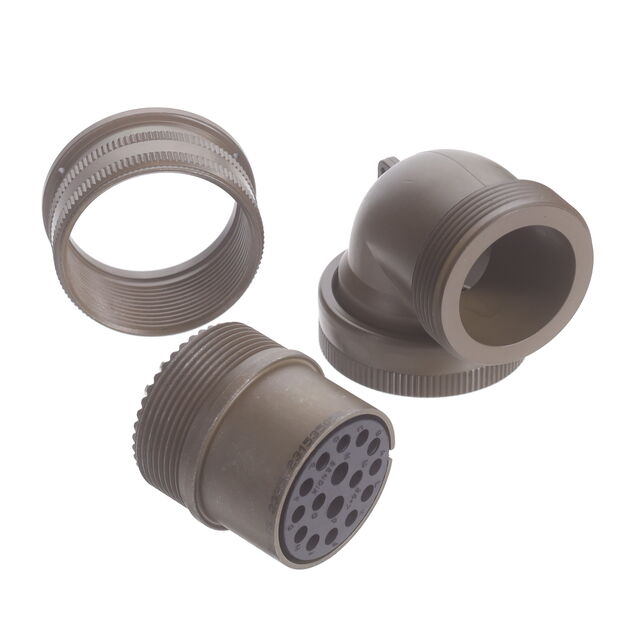

Specification	MS3108A24-7S

Applications	Marine, Military
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating Options	13A, 23A
Fastening Type	Threaded
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Type	Right Angle, Free Hanging (In-Line)
Number of Positions	16
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	N (Normal)
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate, Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert Length	24 mm
Shell Size - Insert Width	7 mm
Shielding	Unshielded
Termination	Solder Cup

MS3108A24 Series

Part	Features	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Primary Material	Shell Material	Operating Temperature (Max)	Operating Temperature (Min)	Orientation	Color	Shell Finish	Grade	Number of Positions	Mounting Type	Contact Finish - Mating	Voltage Rating (AC)	Voltage Rating (DC)	Contact Material	Connector Type	Ingress Protection	Termination	Shielding	Applications	Fastening Type	Insert Material	Qualification	Current Rating
Amphenol Aerospace Operations MS3108A24-26S
Amphenol Aerospace Operations MS3108A24-22P
Amphenol Aerospace Operations MS3108A24-11P
Amphenol Aerospace Operations MS3108A24-28S	Coupling Nut	24	28	Metal	Aluminum Alloy	125 °C	-55 °C	N (Normal)	Olive Drab	Cadmium Olive Drab Chromate	Military	24 pos	Free Hanging (In-Line) Right Angle	Silver	200 VAC	250 VDC	Copper Alloy	Female Sockets Plug	Environment Resistant	Solder Cup	Unshielded	Marine Military	Threaded	Neoprene	MIL-DTL-5015	13 A
Amphenol Aerospace Operations MS3108A24-3P
Amphenol Aerospace Operations MS3108A24-22S	Coupling Nut	24	22	Metal	Aluminum Alloy	125 °C	-55 °C	N (Normal)	Olive Drab	Cadmium Olive Drab Chromate	Military	4	Free Hanging (In-Line) Right Angle	Silver	900 VAC	1250 VDC	Copper Alloy	Female Sockets Plug	Environment Resistant	Solder Cup	Unshielded	Marine Military	Threaded	Neoprene	MIL-DTL-5015	46 A
Amphenol Aerospace Operations MS3108A24-27S
Amphenol Aerospace Operations MS3108A24-7P
Amphenol Aerospace Operations MS3108A24-15S
Amphenol Aerospace Operations MS3108A24-6S
